Description
General part information
095-850-311-250

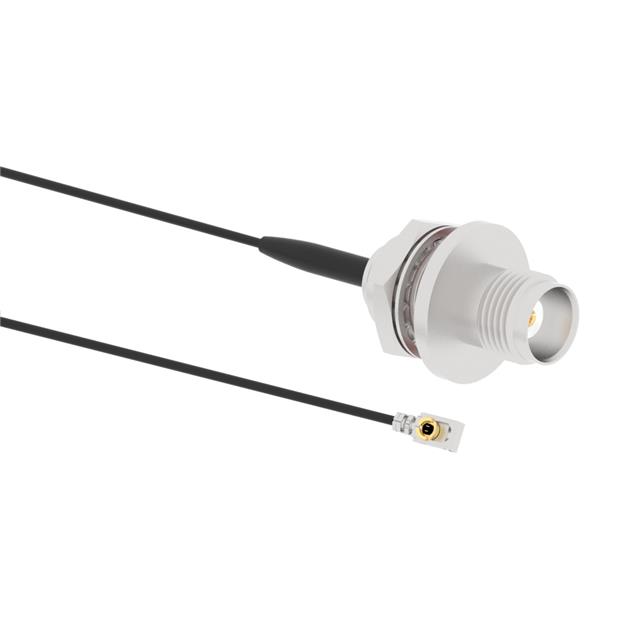

Cable Assembly Coaxial IPEX MHF1 LK to TNC 1.13mm OD Coaxial Cable 9.843" (250.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 095-850-311-250 |
|---|---|
| 1st Connector | TNC Jack |
| 1st Connector Mounting Feature | Front Side Nut, Bulkhead, Rear Side Nut |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Female |
| 2nd Connector | IPEX MHFI LK (Locking) Plug, Right Angle, I-PEX MHFI LK (Locking) Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Outer Diameter | 1.13 mm |
| Cable Type | Coaxial Cable, OD Coaxial Cable, 1.13mm OD Coaxial Cable |
| Cable Type Size | 1.13 |
| Color | Black |
| Frequency - Max | 9 GHz |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Length | 9.843 in |
| Overall Impedance | 50 Ohms |
| Style | IPEX MHF1 LK to TNC, I-PEX MHF1 LK to TNC |
