384528-E
ActiveTE Connectivity AMP Connectors
SRCP 1,27 4 F 1 IDC22 137 E1 162 1,27 TR
384528-E
ActiveTE Connectivity AMP Connectors
SRCP 1,27 4 F 1 IDC22 137 E1 162 1,27 TR
Description
General part information
384528-E

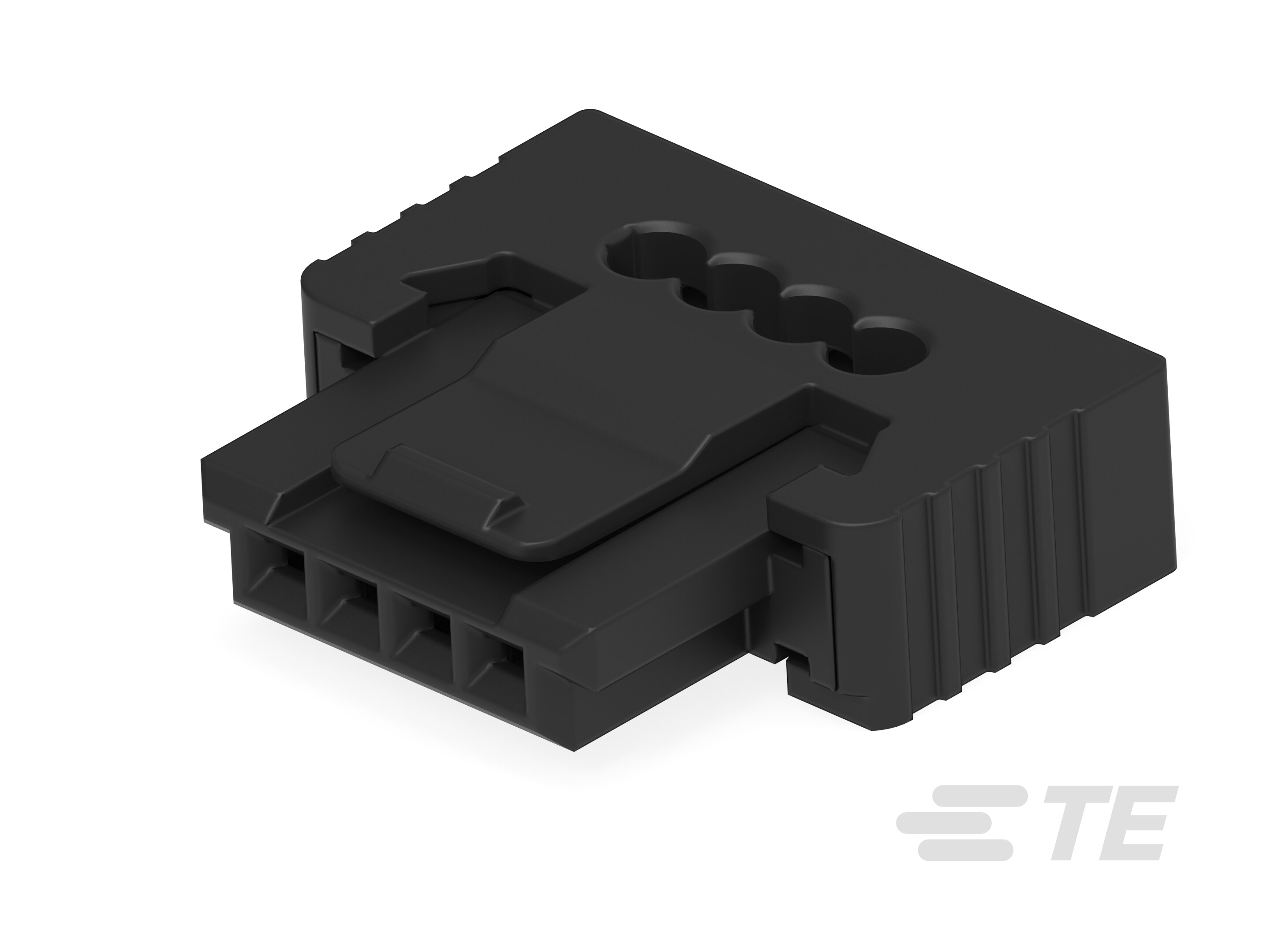

Housing, Housing for Female Terminals, Wire-to-Board, 4 Position, 1.27 mm [.05 in] Centerline, Insulation Displacement (IDC), 1 Row, Black
Technical Specifications
Parameters and characteristics for this part
| Specification | 384528-E |
|---|---|
| Cable Termination | IDC |
| Color | Black |
| Connector Type | Receptacle |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Mounting Type | Right Angle, Free Hanging (In-Line) |
| Number of Positions | 4 |
| Number of Rows | 1 |
| Pitch | 0.05 in |
| Wire Gauge | 22 AWG |
| Wire Type | Ribbon Cable, Discrete |
