26130-67-01

Active

Orion Fans

CORD 16AWG NEMA5-15P - CBL 6.58'

Search across all available documentation for this part.

Active

Orion Fans

CORD 16AWG NEMA5-15P - CBL 6.58'

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	26130-67-01	26130 Series

1st Connector	NEMA 5-15P	NEMA 5-15P
2nd Connector	Cable	Cable
Approval Agency Marking	CSA, KEMA, BSI Kitemark, OVE, NEMKO, SEMKO, IMQ, CEBEC, DEMKO, NF, ESTI, T, UL, ASTA, VDE Registered, FIMKO, SAA	CSA, KEMA, BSI Kitemark, OVE, NEMKO, SEMKO, IMQ, CEBEC, DEMKO, NF, ESTI, T, UL, ASTA, VDE Registered, FIMKO, SAA
Approved Countries	Netherlands, Japan, Norway, New Zealand, United States, Sweden, Finland, Australia, Canada, United Kingdom, Europe	Netherlands, Japan, Norway, New Zealand, United States, Sweden, Finland, Australia, Canada, United Kingdom, Europe
Color	Black	Black
Cord Type	SJT	SJT
Current Rating (Amps)	13 A	13 A
Length	6.58 ft	6.58 ft
Length	2.01 m	2.01 m
Length	-	9.84 ft
Length	-	3 m
Number of Conductors	3	3
Operating Temperature	60 °C	60 °C
Shielding	Unshielded	Unshielded
Style	Male Pins (Blades) to Leads	Male Pins (Blades) to Leads
Voltage Rating	125 VAC	125 VAC
Wire Gauge	16 AWG	16 AWG

CORD 16AWG NEMA5-15P - CBL 9.84'

Part	Voltage Rating	Approved Countries	Length [x]	Length [x]	Operating Temperature	Approval Agency Marking	Style	Wire Gauge	Color	2nd Connector	Current Rating (Amps)	Shielding	Cord Type	1st Connector	Number of Conductors	Length	Length
Orion Fans 26130-910-01	125 VAC	Australia, Canada, Europe, Finland, Japan, Netherlands, New Zealand, Norway, Sweden, United Kingdom, United States	9.84 ft	3 m	60 °C	ASTA, BSI Kitemark, CEBEC, CSA, DEMKO, ESTI, FIMKO, IMQ, KEMA, NEMKO, NF, OVE, SAA, SEMKO, T, UL, VDE Registered	Male Pins (Blades) to Leads	16 AWG	Black	Cable	13 A	Unshielded	SJT	NEMA 5-15P	3
Orion Fans 26130-67-01	125 VAC	Australia, Canada, Europe, Finland, Japan, Netherlands, New Zealand, Norway, Sweden, United Kingdom, United States			60 °C	ASTA, BSI Kitemark, CEBEC, CSA, DEMKO, ESTI, FIMKO, IMQ, KEMA, NEMKO, NF, OVE, SAA, SEMKO, T, UL, VDE Registered	Male Pins (Blades) to Leads	16 AWG	Black	Cable	13 A	Unshielded	SJT	NEMA 5-15P	3	6.58 ft	2.01 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

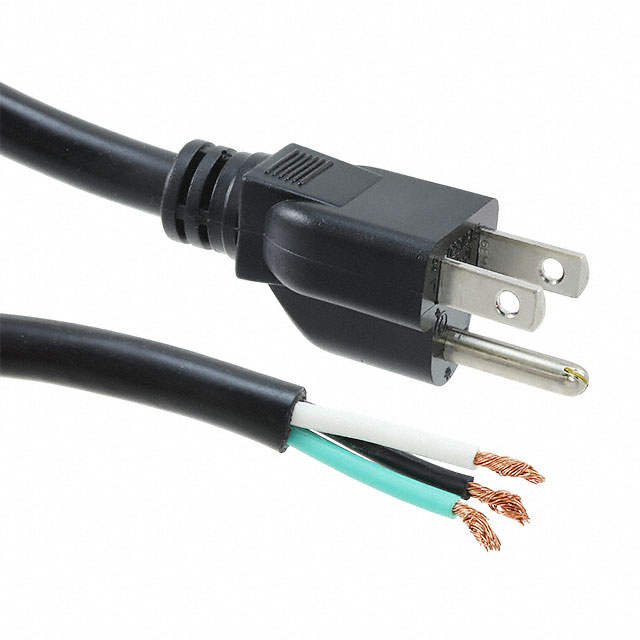

6.58' (2.01m) Power Cord Black NEMA 5-15P To Cable SJT
