1725055
ActivePhoenix Contact

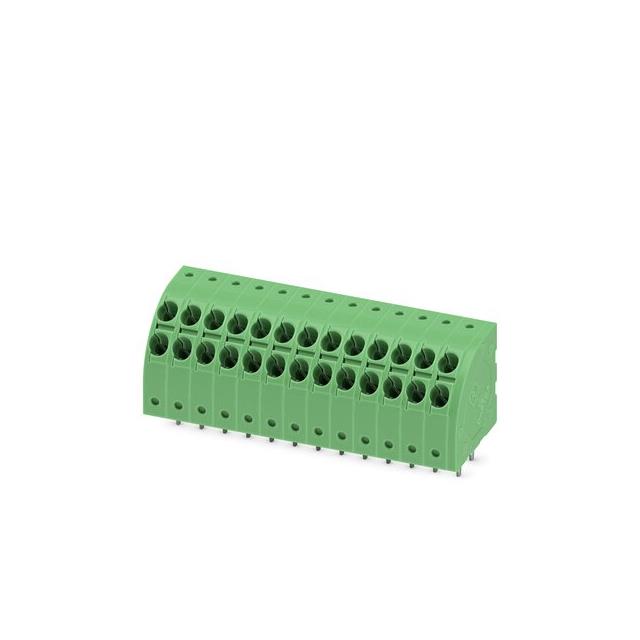

TERM BLOCK 13POS 45DEG 3.5MM PCB
1725055
ActivePhoenix Contact
TERM BLOCK 13POS 45DEG 3.5MM PCB
Description
General part information
1725055
13 Position Wire to Board Terminal Block 45° (135°) Angle with Board 0.138" (3.50mm) Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | 1725055 |
|---|---|
| Color | Green |
| Current | 12 A |
| Housing Material | Nylon, Polyamide, PA |
| Mating Orientation (Angle) | 45 ° |
| Mating Orientation (Angle) (Alternate) | 135 ° |
| Mating Orientation (Description) | Angle with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Pitch | 0.138 in |
| Positions Per Level | 13 |
| Voltage | 300 V |
| Wire Gauge (AWG) (Max) | 24 AWG |
| Wire Gauge (AWG) (Min) | 16 AWG |
| Wire Termination | Leg Spring, Screwless, Push-In Spring |
