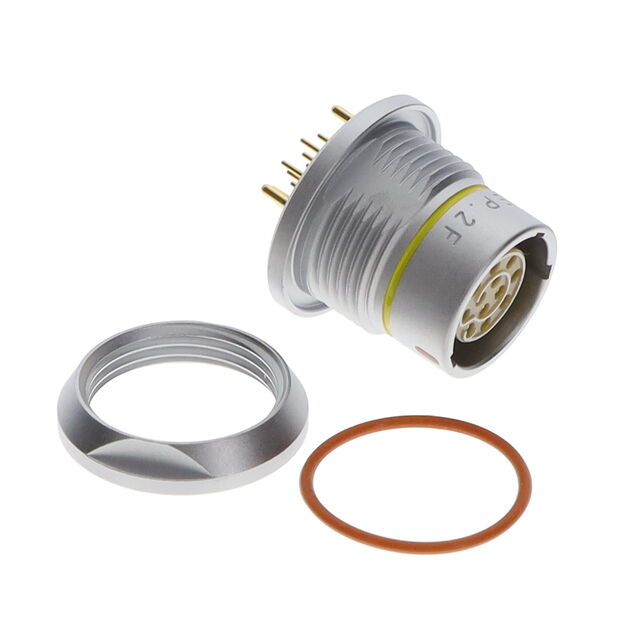

HEP.2F.312.CLNP
ActiveLEMO
CONN RCPT FMALE 12POS GOLD SLDR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HEP.2F.312.CLNP
ActiveLEMO
CONN RCPT FMALE 12POS GOLD SLDR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | HEP.2F.312.CLNP | HEP.2F Series |
|---|---|---|
| Applications | Aerospace | Aerospace |
| Color | Silver | Silver, Gray |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 59 Áin | 59 Áin |
| Contact Finish Thickness - Mating | 1.5 Ám | 1.5 Ám |
| Contact Material | Bronze | Bronze |
| Current Rating (Amps) | 7 A | 5 - 10 A |
| Fastening Type | Push-Pull | Push-Pull |
| Features | Potted | Potted |
| Ingress Protection | IP68 - Dust Tight, Waterproof | IP68 - Dust Tight, Waterproof |
| Insert Material | Polyetheretherketone (PEEK) | Polyetheretherketone (PEEK) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Mounting Type | Through Hole, Panel Mount | Through Hole, Panel Mount |
| Number of Positions | 12 | 8 - 19 |
| Operating Temperature [Max] | 150 °C | 100 - 150 °C |
| Operating Temperature [Min] | -50 °C | -50 - -15 °C |
| Orientation | P | P |
| Primary Material | Metal | Metal |
| Shell Finish | Chrome | Chrome, Nickel |
| Shell Material | Brass | Brass, Aluminum Alloy |
| Shell Size - Insert | 312 | 308 - 319 |
| Shielding | Shielded | Shielded |
| Termination | Solder | Solder |
HEP.2F Series
CONN RCPT FMALE 12POS GOLD SLDR
| Part | Shell Material | Operating Temperature [Max] | Operating Temperature [Min] | Color | Number of Positions | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Mounting Type | Material Flammability Rating | Shielding | Contact Finish - Mating | Features | Applications | Shell Finish | Contact Material | Mounting Feature | Fastening Type | Connector Type | Orientation | Insert Material | Shell Size - Insert | Primary Material | Ingress Protection | Termination | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO HEP.2F.312.CLNP | Brass | 150 °C | -50 °C | Silver | 12 | 59 Áin | 1.5 Ám | Panel Mount, Through Hole | UL94 V-0 | Shielded | Gold | Potted | Aerospace | Chrome | Bronze | Bulkhead - Front Side Nut | Push-Pull | Receptacle, Female Sockets | P | Polyetheretherketone (PEEK) | 312 | Metal | IP68 - Dust Tight, Waterproof | Solder | 7 A |
LEMO HEP.2F.308.XLNP | Aluminum Alloy | 100 °C | -15 °C | Gray | 8 | 59 Áin | 1.5 Ám | Panel Mount, Through Hole | UL94 V-0 | Shielded | Gold | Potted | Aerospace | Nickel | Bronze | Bulkhead - Front Side Nut | Push-Pull | Receptacle, Female Sockets | P | Polyetheretherketone (PEEK) | 308 | Metal | IP68 - Dust Tight, Waterproof | Solder | 10 A |
LEMO HEP.2F.319.CLNP | Brass | 150 °C | -50 °C | Silver | 19 | 59 Áin | 1.5 Ám | Panel Mount, Through Hole | UL94 V-0 | Shielded | Gold | Potted | Aerospace | Chrome | Bronze | Bulkhead - Front Side Nut | Push-Pull | Receptacle, Female Sockets | P | Polyetheretherketone (PEEK) | 319 | Metal | IP68 - Dust Tight, Waterproof | Solder | 5 A |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 120.19 | |
| 10 | $ 110.29 | |||
| 25 | $ 106.05 | |||
| 50 | $ 102.52 | |||
| 100 | $ 96.86 | |||
Description
General part information
HEP.2F Series
12 Position Circular Connector Receptacle, Female Sockets Solder
Documents
Technical documentation and resources
