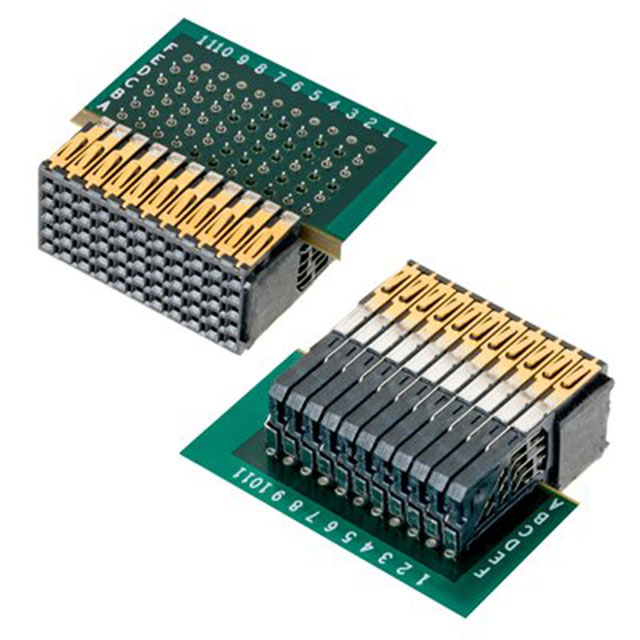

UHM-S110A3-5AP1-KR
Active3M
CONN RECEPT 110POS 2MM PRESS-FIT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UHM-S110A3-5AP1-KR
Active3M
CONN RECEPT 110POS 2MM PRESS-FIT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | UHM-S110A3-5AP1-KR | UHM-S110 Series |
|---|---|---|
| Connector Style | A 22 | A 22, B 22 |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Connector Usage | CompactPCI | CompactPCI |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Current Rating (Amps) | 1 A | 1 A |
| Features | Upper and Lower Shield | Upper and Lower Shield |
| Mounting Type | Through Hole, Right Angle | Through Hole, Right Angle |
| Number of Positions | 110 positions | 110 - 132 positions |
| Number of Positions | - | 22 |
| Number of Positions Loaded | All | All |
| Number of Rows | 5 | 5 |
| Number of Rows | - | 5 + 1 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Pitch [x] | 0.079 in | 0.079 in |
| Pitch [x] | 2 mm | 2 mm |
| Termination | Press-Fit | Press-Fit |
UHM-S110 Series
CONN RECEPT 110POS 2MM PRESS-FIT
| Part | Features | Contact Finish | Termination | Contact Finish Thickness | Contact Finish Thickness | Connector Style | Connector Type | Number of Rows | Number of Positions Loaded | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Pitch [x] | Pitch [x] | Connector Usage | Number of Positions | Number of Rows | Number of Positions [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Upper and Lower Shield | Gold | Press-Fit | 0.76 Ám | 30 Áin | A 22 | Receptacle, Female Sockets | 5 | All | 1 A | -55 °C | 125 °C | Through Hole, Right Angle | 0.079 in | 2 mm | CompactPCI | 110 positions | |||
Upper and Lower Shield | Gold | Press-Fit | 0.76 Ám | 30 Áin | B 22 | Receptacle, Female Sockets | All | 1 A | -55 °C | 125 °C | Through Hole, Right Angle | 0.079 in | 2 mm | CompactPCI | 132 | 5 + 1 | 22 | ||
Upper and Lower Shield | Gold | Press-Fit | 0.76 Ám | 30 Áin | B 22 | Receptacle, Female Sockets | All | 1 A | -55 °C | 125 °C | Through Hole, Right Angle | 0.079 in | 2 mm | CompactPCI | 132 | 5 + 1 | 22 | ||
Upper and Lower Shield | Gold | Press-Fit | 0.76 Ám | 30 Áin | A 22 | Receptacle, Female Sockets | 5 | All | 1 A | -55 °C | 125 °C | Through Hole, Right Angle | 0.079 in | 2 mm | CompactPCI | 110 positions | |||
Upper and Lower Shield | Gold | Press-Fit | 0.76 Ám | 30 Áin | A 22 | Receptacle, Female Sockets | 5 | All | 1 A | -55 °C | 125 °C | Through Hole, Right Angle | 0.079 in | 2 mm | CompactPCI | 110 positions |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
UHM-S110 Series
110 Position Receptacle, Female Sockets Connector 0.079" (2.00mm) Through Hole, Right Angle
