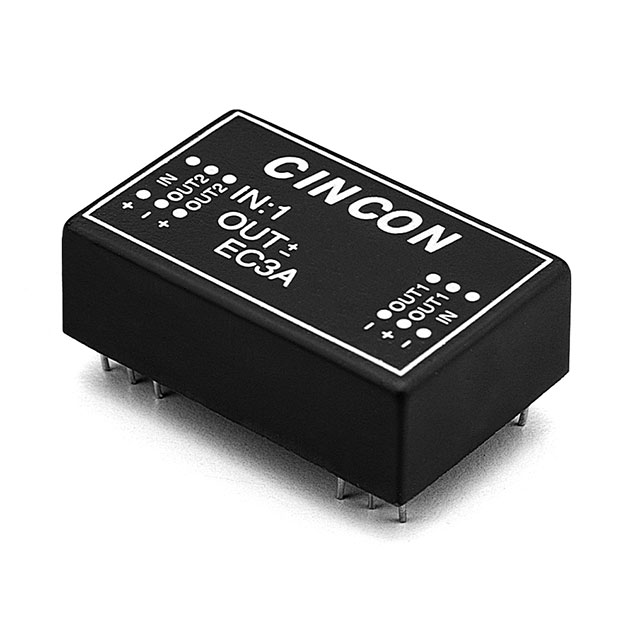

EC3A32M
ActiveCincon Electronics Co. LTD
DC DC CONVERTER 12V 3W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EC3A32M
ActiveCincon Electronics Co. LTD
DC DC CONVERTER 12V 3W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EC3A32M |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 250 mA |
| Efficiency | 80 % |
| Features | SCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 71 °C |
| Operating Temperature [Min] | -25 °C |
| Package / Case | 24-DIP Module, 14 Leads |
| Power (Watts) | 3 W |
| Size / Dimension [x] | 31.8 mm |
| Size / Dimension [x] | 1.25 " |
| Size / Dimension [y] | 0.8 in |
| Size / Dimension [y] | 20.3 mm |
| Size / Dimension [z] | 0.4 " |
| Size / Dimension [z] | 10.2 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 72 V |
| Voltage - Input (Min) [Min] | 36 V |
| Voltage - Isolation | 500 V |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 13.46 | |
Description
General part information
EC3A32M
Isolated Module DC DC Converter 1 Output 12V 250mA 36V - 72V Input
