5-87190-2
ActiveTE Connectivity AMP Connectors

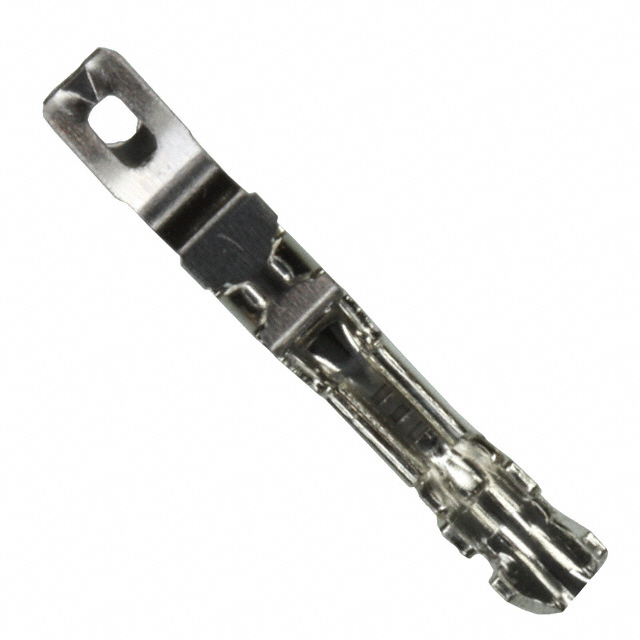

CONN SOCKET 28-30AWG CRIMP TIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5-87190-2
ActiveTE Connectivity AMP Connectors
CONN SOCKET 28-30AWG CRIMP TIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 5-87190-2 | 87190 Series |
|---|---|---|
| Contact Finish | Tin | Gold, Tin, Tin-Lead |
| Contact Finish Thickness | 2.54 µm | 0.76 - 2.54 Ám |
| Contact Finish Thickness | 100 µin | 30 - 100 Áin |
| Contact Termination | Crimp | Crimp |
| Pin or Socket | Socket | Socket |
| Wire Gauge [Max] | 30 AWG | 30 AWG |
| Wire Gauge [Min] | 27.5 AWG | 27.5 AWG |
87190 Series
CONN SOCKET 28-30AWG CRIMP GOLD
| Part | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Pin or Socket | Wire Gauge [Max] | Wire Gauge [Min] | Contact Termination |
|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 87190-1 | 0.76 Ám | 30 Áin | Gold | Socket | 30 AWG | 27.5 AWG | Crimp |
TE Connectivity AMP Connectors 5-87190-2 | 2.54 µm | 100 µin | Tin | Socket | 30 AWG | 27.5 AWG | Crimp |
TE Connectivity AMP Connectors 87190-2 | 2.54 µm | 100 µin | Tin-Lead | Socket | 30 AWG | 27.5 AWG | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 7000 | $ 0.73 | |
Description
General part information
87190 Series
Socket Contact Tin 28-30 AWG Crimp
