Description
General part information

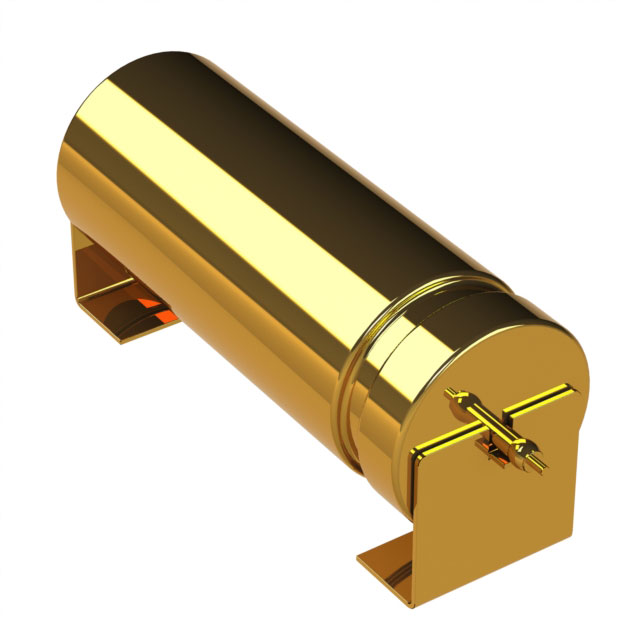

STHD477M125ESHS
470 µF Hermetically Sealed Tantalum Capacitors 125 V Axial, Can 700mOhm @ 120Hz
Technical Specifications
Parameters and characteristics for this part
| Specification | STHD477M125ESHS |
|---|---|
| Capacitance | 470 µF |
| ESR (Equivalent Series Resistance) | 700 mOhm |
| Features | Wet Tantalum |
| Lifetime | 2000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Can, Axial |
| Size / Dimension Diameter | 0.375 in |
| Size / Dimension Length | 1.062 in |
| Tolerance | 20 % |
| Type | Hermetically Sealed |
| Voltage - Rated | 125 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
