Description
General part information

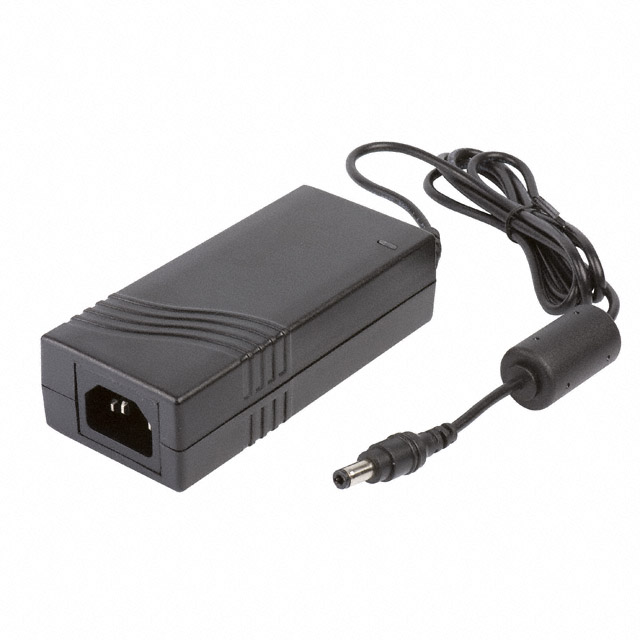

VEF50US24
24V 50 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
Technical Specifications
Parameters and characteristics for this part
| Specification | VEF50US24 |
|---|---|
| Applications | ITE (Commercial) |
| Cord Length | 47.2 in |
| Current - Output (Max) | 2.08 A |
| Efficiency | Level V |
| Form | Desktop (Class I) |
| Input Connector | IEC 320-C14 |
| Input Type | Cord (Sold Separately) |
| No Load Power Consumption (Max) | 300 mW |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -10 °C |
| Output Connector | Barrel Plug |
| Output Connector I.D. | 2.5 mm |
| Output Connector Length | 11 mm |
| Output Connector O.D. | 5.5 mm |
| Polarization | Positive Center |
| Power (Watts) | 50 W |
| Region Utilized | International |
| Size / Dimension Height | 1.23 in |
| Size / Dimension Length | 4.58 in |
| Size / Dimension Width | 2.06 in |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 90 V |
| Voltage - Output | 24 V |
| Weight | 0.761 lb |
