Description
General part information
12895

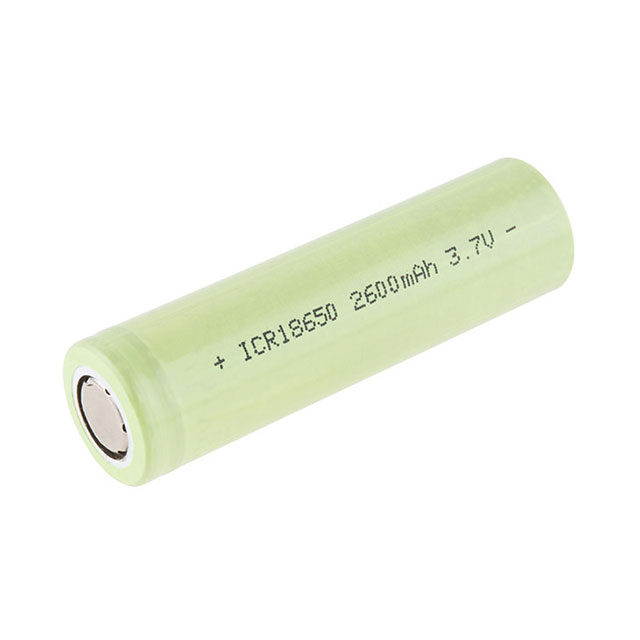

18650 3.7 V Lithium-Ion Battery Rechargeable (Secondary) 2.6Ah
Technical Specifications
Parameters and characteristics for this part
| Specification | 12895 |
|---|---|
| Battery Cell Size | 18650 |
| Battery Chemistry | Lithium-Ion |
| Capacity (Charge) | 2.6 Ah |
| Shipping Info | Due to restrictions, only ground shipment is allowed. |
| Size / Dimension Diameter | 0.72 in |
| Size / Dimension Height | 2.56 in |
| Standard Charge Current | 1.3 A |
| Standard Charge Time | 4 Hrs |
| Termination Style | Flat Top (Non-Extending) |
| Voltage - Rated | 3.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
