0898CD15C1748001E
ObsoleteJohanson Technology Inc.
RF DIR COUPLER 880-915MHZ 0805
0898CD15C1748001E
ObsoleteJohanson Technology Inc.
RF DIR COUPLER 880-915MHZ 0805
Description
General part information
0898CD15C1748001E

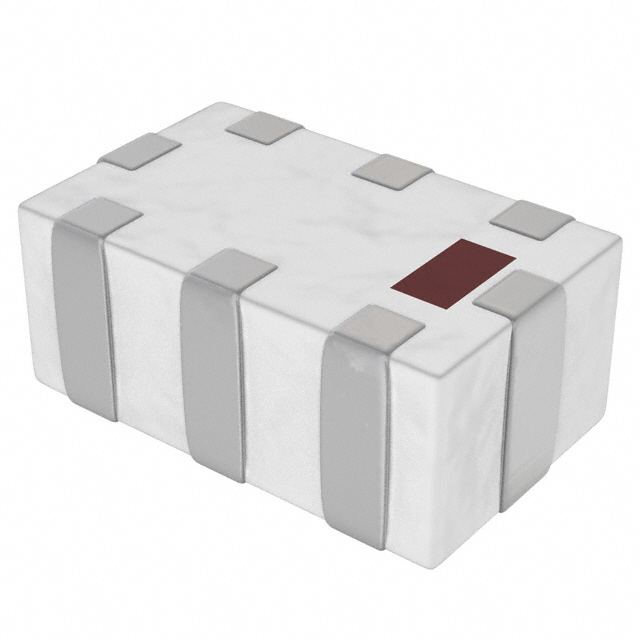

RF Directional Coupler 880MHz ~ 915MHz, 1.71GHz ~ 1.785GHz 19.2 ± 1dB, 14 ± 1.5dB 0805 (2012 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | 0898CD15C1748001E |
|---|---|
| Coupler Type | Dual Band, Dual Path |
| Coupling Factor (Nominal) – 1 | 19.2 dB |
| Coupling Factor (Nominal) – 2 | 14 dB |
| Coupling Factor Tolerance – 1 | 1 dB |
| Coupling Factor Tolerance – 2 | 1.5 dB |
| Frequency Range 1 (Max) | 915 MHz |
| Frequency Range 1 (Min) | 880 MHz |
| Frequency Range 2 (Max) | 1.785 GHz |
| Frequency Range 2 (Min) | 1.71 GHz |
| Insertion Loss | 0.35 dB |
| Insertion Loss (Alt) | 0.45 dB |
| Isolation | 35 dB |
| Package / Case | 0805 (2012 Metric) |
| Package Name | 0805 |
| Return Loss | 10.9 dB |
