1030A 0101000

Active

Belden Inc.

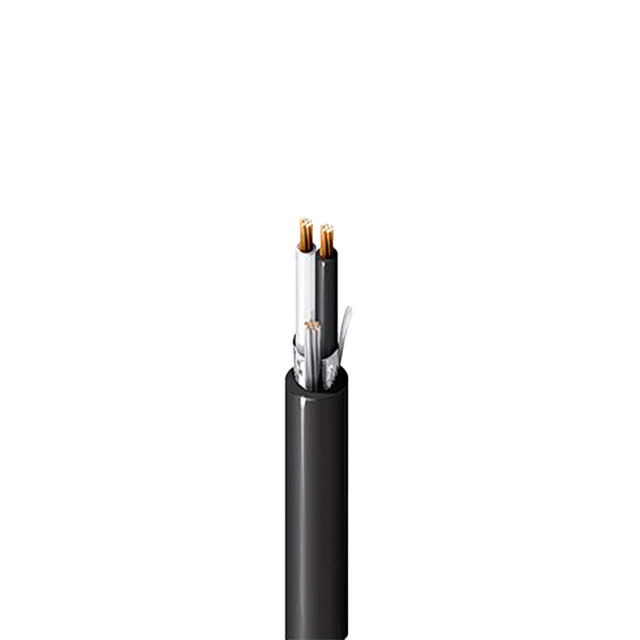

CABLE 2COND 16AWG BLK SHLD 1000'

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 2COND 16AWG BLK SHLD 1000'

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1030A 0101000	1030A Series

Cable Type	Multi-Conductor	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare	Copper, Bare
Conductor Strand [custom]	7	7
Conductor Strand [custom]	24	24
Jacket (Insulation) Diameter [diameter]	6.58 mm	6.58 mm
Jacket (Insulation) Diameter [diameter]	0.259 "	0.259 "
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.94 mm	0.94 mm
Jacket (Insulation) Thickness	0.037 in	0.037 in
Jacket Color	Black	Black
Length	1000 ft	1000 - 20000 ft
Length	304.8 m	304.8 - 6096 m
Length	-	10000 ft
Number of Conductors	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-30 ░C	-30 ░C
Ratings	UL Style 2464	UL Style 2464
Shield Coverage	100 %	100 %
Shield Material	Aluminum	Aluminum
Shield Type	Foil	Foil
Voltage	-	300 V
Wire Gauge	16 AWG	16 AWG

CABLE 2COND 16AWG BLK SHLD 1000'

Part	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Material	Shield Coverage	Conductor Insulation	Cable Type	Ratings	Number of Conductors	Conductor Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length	Length	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Shield Material	Wire Gauge	Conductor Strand [custom]	Conductor Strand [custom]	Shield Type	Length [x]	Voltage
Belden Inc. 1030A 0101000	-30 ░C	105 ░C	Poly-Vinyl Chloride (PVC)	100 %	Poly-Vinyl Chloride (PVC)	Multi-Conductor	UL Style 2464	2	Copper, Bare	0.94 mm	0.037 in	1000 ft	304.8 m	Black	6.58 mm	0.259 "	Aluminum	16 AWG	7	24	Foil
Belden Inc. 1030A 01010000	-30 ░C	105 ░C	Poly-Vinyl Chloride (PVC)	100 %	Poly-Vinyl Chloride (PVC)	Multi-Conductor		2	Copper, Bare	0.94 mm	0.037 in		3048 m	Black	6.58 mm	0.259 "	Aluminum	16 AWG	7	24	Foil	10000 ft	300 V
Belden Inc. 1030A 0105000	-30 ░C	105 ░C	Poly-Vinyl Chloride (PVC)	100 %	Poly-Vinyl Chloride (PVC)	Multi-Conductor		2	Copper, Bare	0.94 mm	0.037 in			Black	6.58 mm	0.259 "	Aluminum	16 AWG	7	24	Foil		300 V
Belden Inc. 1030A 01020000	-30 ░C	105 ░C	Poly-Vinyl Chloride (PVC)	100 %	Poly-Vinyl Chloride (PVC)	Multi-Conductor		2	Copper, Bare	0.94 mm	0.037 in	20000 '	6096 m	Black	6.58 mm	0.259 "	Aluminum	16 AWG	7	24	Foil		300 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 (1 Pair Twisted) Conductor Multi-Conductor Cable Black 16 AWG Foil 1000.0' (304.8m)
