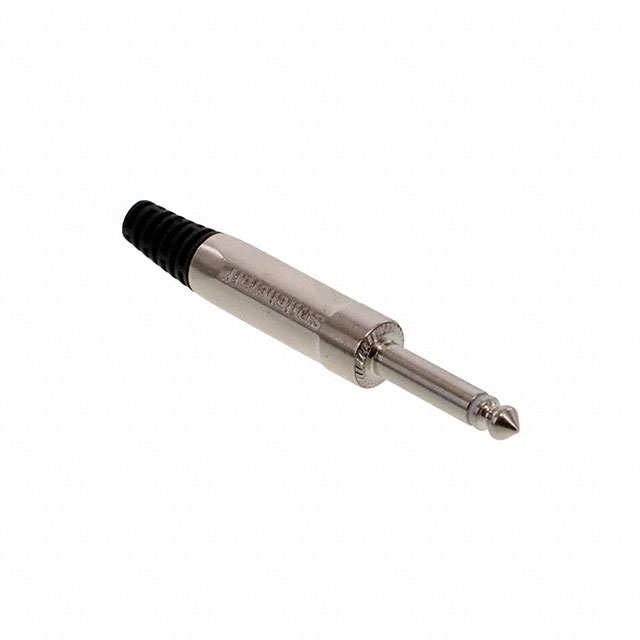

280FL
ActiveSWITCHCRAFT/CONXALL
1/4" PLUG W/ FLEX RELIEF, MONO,
280FL
ActiveSWITCHCRAFT/CONXALL
1/4" PLUG W/ FLEX RELIEF, MONO,
Description
General part information
280FL
6.35mm (0.250", 1/4") - Headphone Phone Plug Mono Connector Solder Lug
Technical Specifications
Parameters and characteristics for this part
| Specification | 280FL |
|---|---|
| Actual Diameter | 0.25 in |
| Cable Opening (Max) | 0.25 in |
| Cable Opening (Min) | 0.22 in |
| Connector Type | Phone Plug |
| Features | Strain Relief |
| Gender | Male |
| Includes | Handle, Insulator Tube, Strain Relief, Connector |
| Includes Total Count | 4 pcs |
| Industry Recognized Mating Diameter (Headphone) | 6.35 mm |
| Mating Length/Depth | 1.2 in |
| Mounting Type | Free Hanging (In-Line) |
| Signal Lines | Mono |
| Termination | Solder Lug |
