FLAB36O0106KF
ActiveKYOCERA AVX
NEW
FLAB36O0106KF
ActiveKYOCERA AVX
NEW
Description
General part information
FLAB36O0106KF

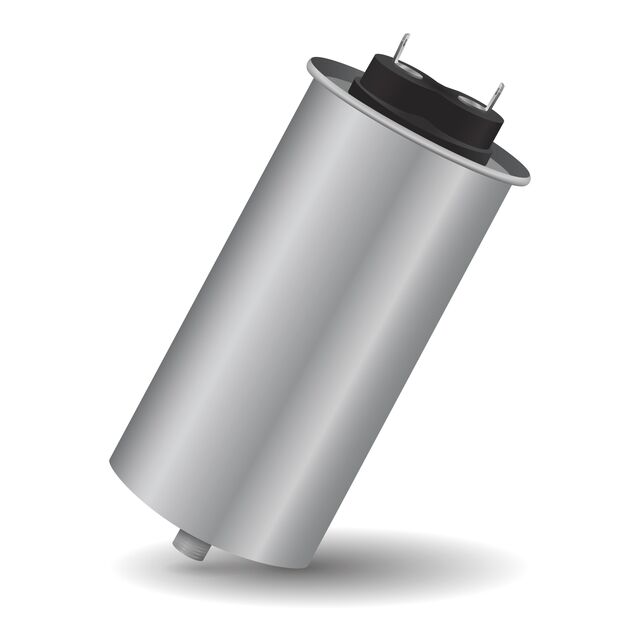

10 µF Film Capacitor 690V Polypropylene (PP), Metallized Radial, Can
Technical Specifications
Parameters and characteristics for this part
| Specification | FLAB36O0106KF |
|---|---|
| Applications | RFI Suppression, EMI |
| Capacitance | 10 µF |
| Dielectric Material | Metallized, Polypropylene (PP) |
| Height - Seated (Max) | 5 in |
| Mounting Type | Chassis, Stud Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can, Radial |
| Size / Dimension Diameter | 1.969 in |
| Termination | Quick Connect |
| Termination Probe Tip OD | 0.25 in |
| Tolerance | 10 % |
| Voltage Rating - AC | 690 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
