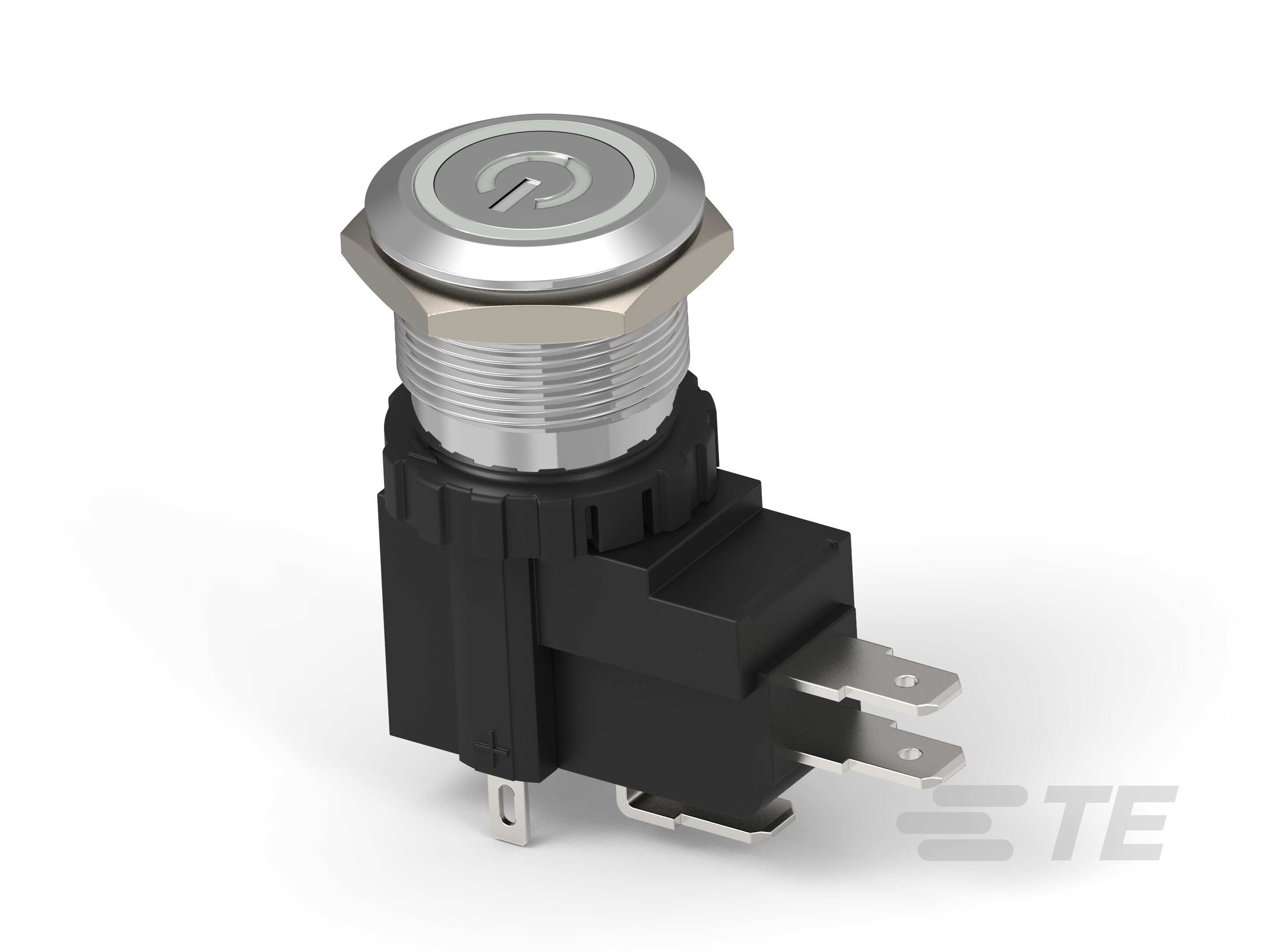

Specification	AVH19MSFPA122604

Actuator Marking	Power Symbol
Actuator Type	Round, Flush, Button
Circuit	SPDT
Color	Green, Red
Color - Actuator/Cap	Silver
Current Rating	26 A
Illumination Type	LED
Illumination Voltage (Nominal)	12 V
Ingress Protection Description	Waterproof, Dust Tight
Ingress Protection IP Rating	IP67
Mounting Type	Front, Panel Mount
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-25 °C
Panel Cutout Diameter	19.1 mm
Panel Cutout Shape	Circular
Quick Connect Size (0.250")	0.25 in
Switch Function	On-Mom
Termination Style	Quick Connect
Type	Illuminated, Anti-Vandal
Voltage Rating - AC	125 V

ALCOSWITCH AVH19 Series

...

Part	Voltage Rating - AC	Quick Connect Size (0.187")	Termination Style	Color	Illumination Type	Mounting Type	Current Rating	Ingress Protection Description	Ingress Protection IP Rating	Circuit	Actuator Marking	Operating Temperature (Max)	Operating Temperature (Min)	Type	Illumination Voltage (Nominal)	Actuator Type	Color - Actuator/Cap	Switch Function	Panel Cutout Diameter	Panel Cutout Shape	Electrical Life (Cycles)	Mechanical Life (Cycles)
TE Connectivity AMP Connectors AVH19MSFE15121604	125 V	0.187 in	Quick Connect	Yellow	LED	Front Panel Mount	16 A	Dust Tight Waterproof	IP67	SPDT	Power Symbol	85 °C	-25 °C	Anti-Vandal Illuminated	12 V	Button Flush Round	Silver	On-Mom	19.1 mm	Circular	50000	1000000 Cycles
