Description
General part information

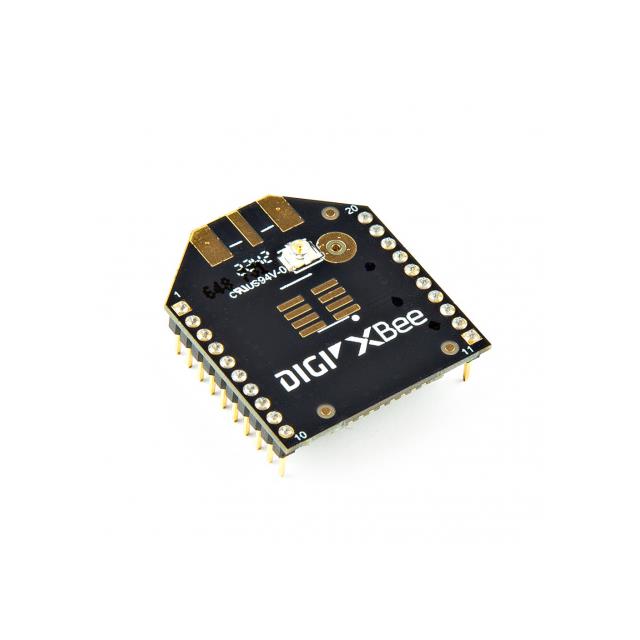

WRL-22629
802.15.4, Bluetooth Bluetooth v4.2, Bluetooth v5.0, Zigbee® Transceiver Module 2.4GHz Antenna Not Included, U.FL Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | WRL-22629 |
|---|---|
| Antenna Type | Antenna Not Included, U.FL |
| Current - Transmitting | 195 mA |
| Data Rate | 1 Mbps |
| Frequency | 2.4 GHz |
| Memory Size (Flash) | 1 MB |
| Memory Size (RAM) | 96 kB |
| Memory Size (SRAM) | 96 kB |
| Memory Type | RAM, Flash, SRAM |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 20-DIP Module |
| Power - Output | 19 dBm |
| Protocol | Bluetooth v4.2, Bluetooth v5.0, Zigbee® |
| RF Family/Standard | 802.15.4, Bluetooth |
| Sensitivity | -103 dBm |
| Serial Interfaces | SPI, UART |
| Utilized IC / Part | EFR32MG |
| Voltage - Supply (Maximum) | 3.8 V |
| Voltage - Supply (Minimum) | 1.72 V |
