KOVSP10MDNCCCT
ActiveKYOCERA AVX
10 MHZ OCXO SMT 9X14MM (P PACKAG
KOVSP10MDNCCCT
ActiveKYOCERA AVX
10 MHZ OCXO SMT 9X14MM (P PACKAG
Description
General part information
KOVSP10MDNCCCT

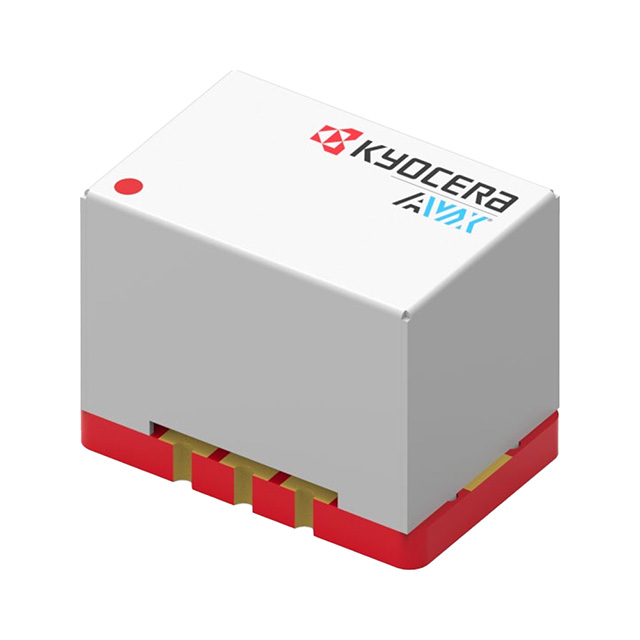

10 MHz OCXO CMOS, TTL Oscillator 3.3V 6-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | KOVSP10MDNCCCT |
|---|---|
| Base Resonator | Crystal |
| Frequency | 10 MHz |
| Frequency Stability | 10 ppb |
| Height - Seated (Max) | 0.449 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output | CMOS, TTL |
| Package / Case | No Lead, 6-SMD |
| Size / Dimension Length | 0.567 in |
| Size / Dimension Width | 0.37 in |
| Type | OCXO |
| Voltage - Supply | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
