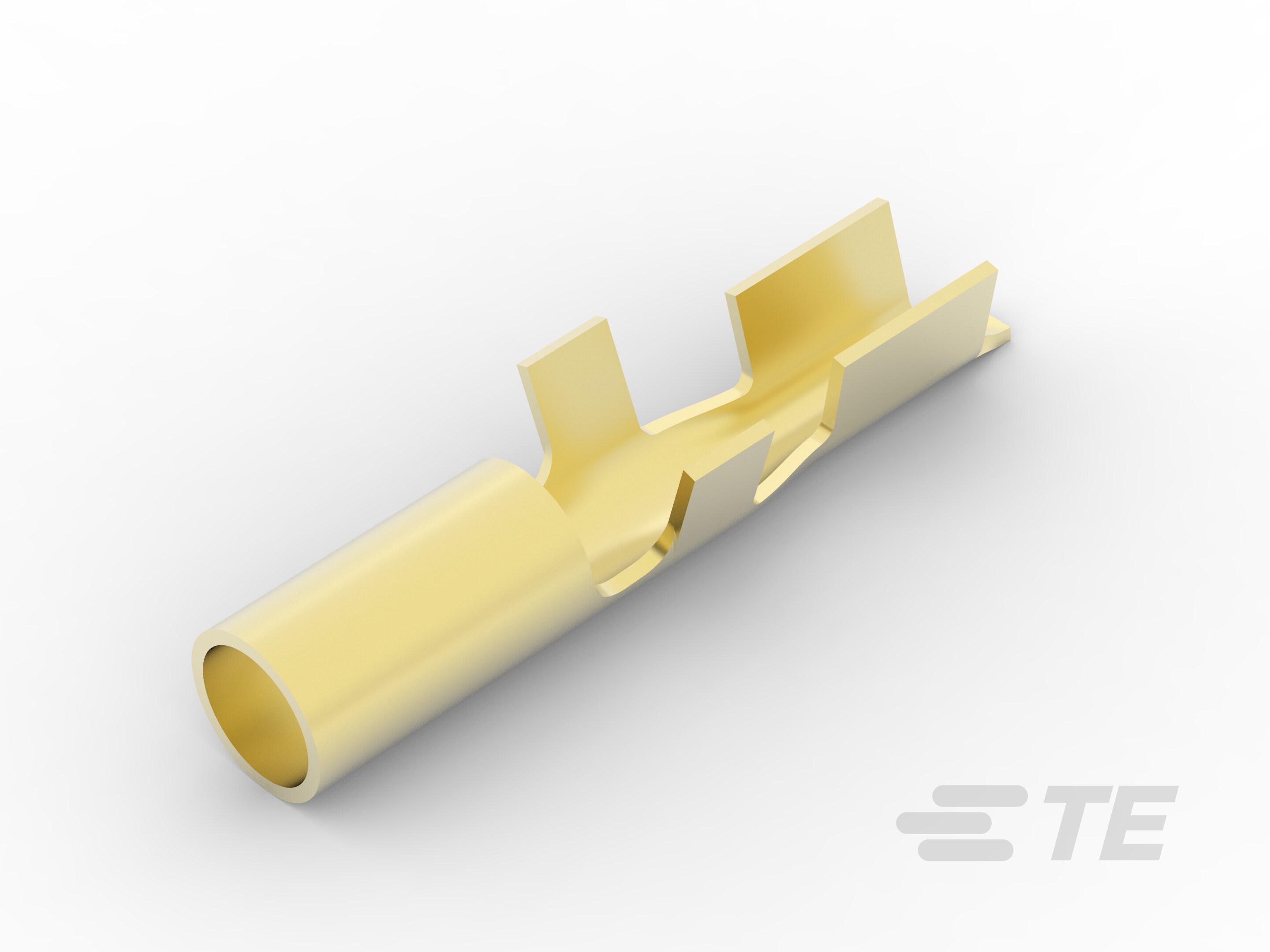

60440-1
ActiveTE Connectivity AMP Connectors
093 PIN REC 22-18 010BR ROHS COMPLIANT: YES
60440-1
ActiveTE Connectivity AMP Connectors
093 PIN REC 22-18 010BR ROHS COMPLIANT: YES
Description
General part information
60440-1
Receptacle, 2.36 mm [.093 in] Pin Diameter, 22 – 18 AWG, .3 – .8 mm² Wire, 642 – 1624 CMA, Open Barrel, Unplated Plating, 13.46 mm [.53 in] Length
Technical Specifications
Parameters and characteristics for this part
| Specification | 60440-1 |
|---|---|
| Contact Material | Brass |
| Diameter - Barrel | 0.093 in |
| Insulation | Non-Insulated |
| Length - Barrel | 0.203 in |
| Terminal Type | Receptacle (Socket), Female |
| Termination | Crimp |
| Wire Gauge (AWG) (Max) | 22 AWG |
| Wire Gauge (AWG) (Min) | 18 AWG |
