LCCA30288-FT6
ActivePasternack

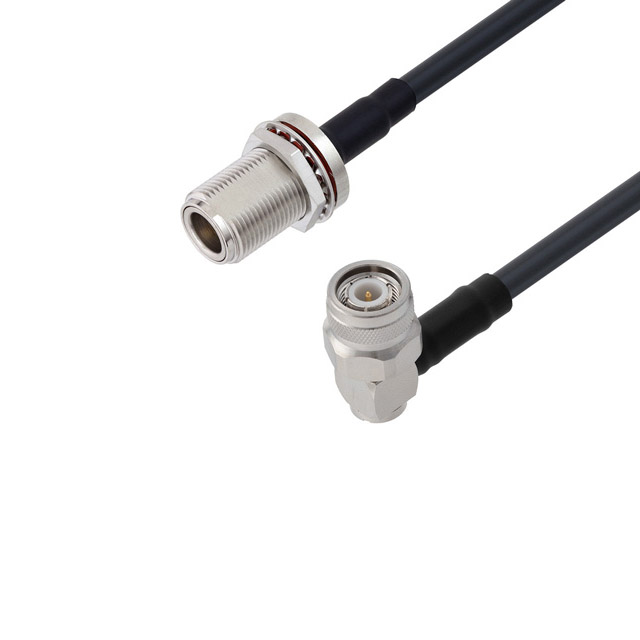

N FEMALE BULKHEAD TO TNC MALE RI
LCCA30288-FT6
ActivePasternack
N FEMALE BULKHEAD TO TNC MALE RI
Description
General part information
LCCA30288-FT6
Cable Assembly Coaxial N-Type to TNC LMR 240 DB 72.0" (1.8m) 6.0'
Technical Specifications
Parameters and characteristics for this part
| Specification | LCCA30288-FT6 |
|---|---|
| 1st Connector | N-Type Jack |
| 1st Connector Mounting Feature | Front Side Nut, Bulkhead |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Female |
| 2nd Connector | Right Angle, TNC Plug |
| 2nd Connector Mounting Type | Right Angle, Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | LMR DB |
| Cable Type Size | 240 |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 5.8 GHz |
| Length | 72 in |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | N-Type, TNC |
