Description
General part information

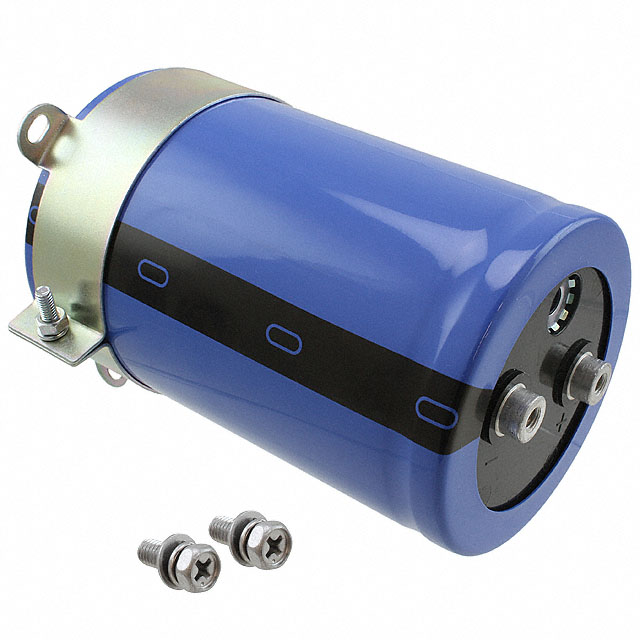

LNR2D153MSE
15000 µF 200 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 5000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | LNR2D153MSE |
|---|---|
| Applications | General Purpose |
| Capacitance | 15000 µF |
| Height - Seated (Max) | 4.843 in |
| Lead Spacing | 0.5 in |
| Lifetime | 5000 Hrs |
| Mounting Type | Chassis Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | Can - Screw Terminals, Radial |
| Polarization | Polar |
| Ripple Current | 13 A, 15.6 A |
| Size / Dimension Diameter | 3 in |
| Tolerance | 20 % |
| Voltage - Rated | 200 VDC |
