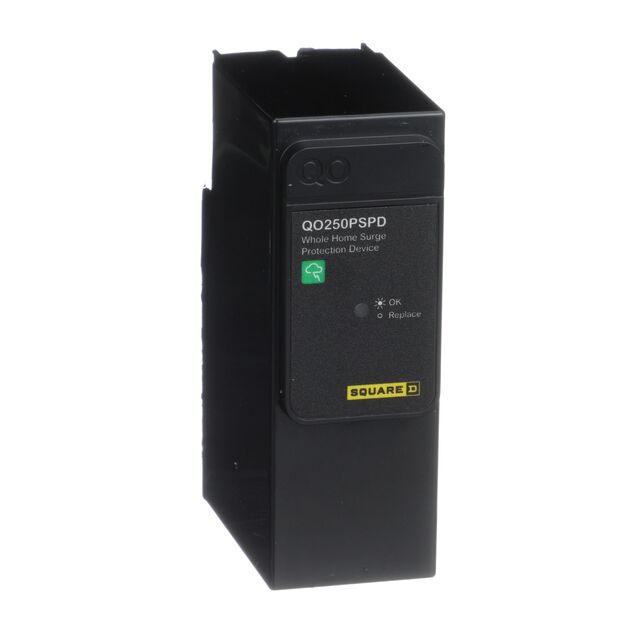

QO250PSPD
ActiveSCHNEIDER ELECTRIC
SURGE PROTECTOR, SURGE PROTECTOR, 1 POLE, TYPE 2, 50 KA, 150 V, SURFACE MOUNT
QO250PSPD
ActiveSCHNEIDER ELECTRIC
SURGE PROTECTOR, SURGE PROTECTOR, 1 POLE, TYPE 2, 50 KA, 150 V, SURFACE MOUNT
Description
General part information
QO250PSPD
SURGE PROTECTOR, SURGE PROTECTOR, 1 POLE, TYPE 2, 50 KA, 150 V, SURFACE MOUNT
Technical Specifications
Parameters and characteristics for this part
| Specification | QO250PSPD |
|---|---|
| Current - Discharge (Max) | 50 kA |
| Current - Discharge (Nom) | 20 kA |
| Current - Short Circuit Rating (SCCR) | 22 kA |
| Form | Module Only |
| Mounting Type | Chassis Mount |
| Number of Poles | 1 |
| Type | Type 2 |
| Voltage - Continuous Operating (Max) (MCOV) | 150 VAC |
