2483407-2
ActiveTE Connectivity AMP Connectors
CBL ASSY, HD BNC PLUG-PLUG, 75 OHM/500MM ROHS COMPLIANT: YES
2483407-2
ActiveTE Connectivity AMP Connectors
CBL ASSY, HD BNC PLUG-PLUG, 75 OHM/500MM ROHS COMPLIANT: YES
Description
General part information
2483407-2

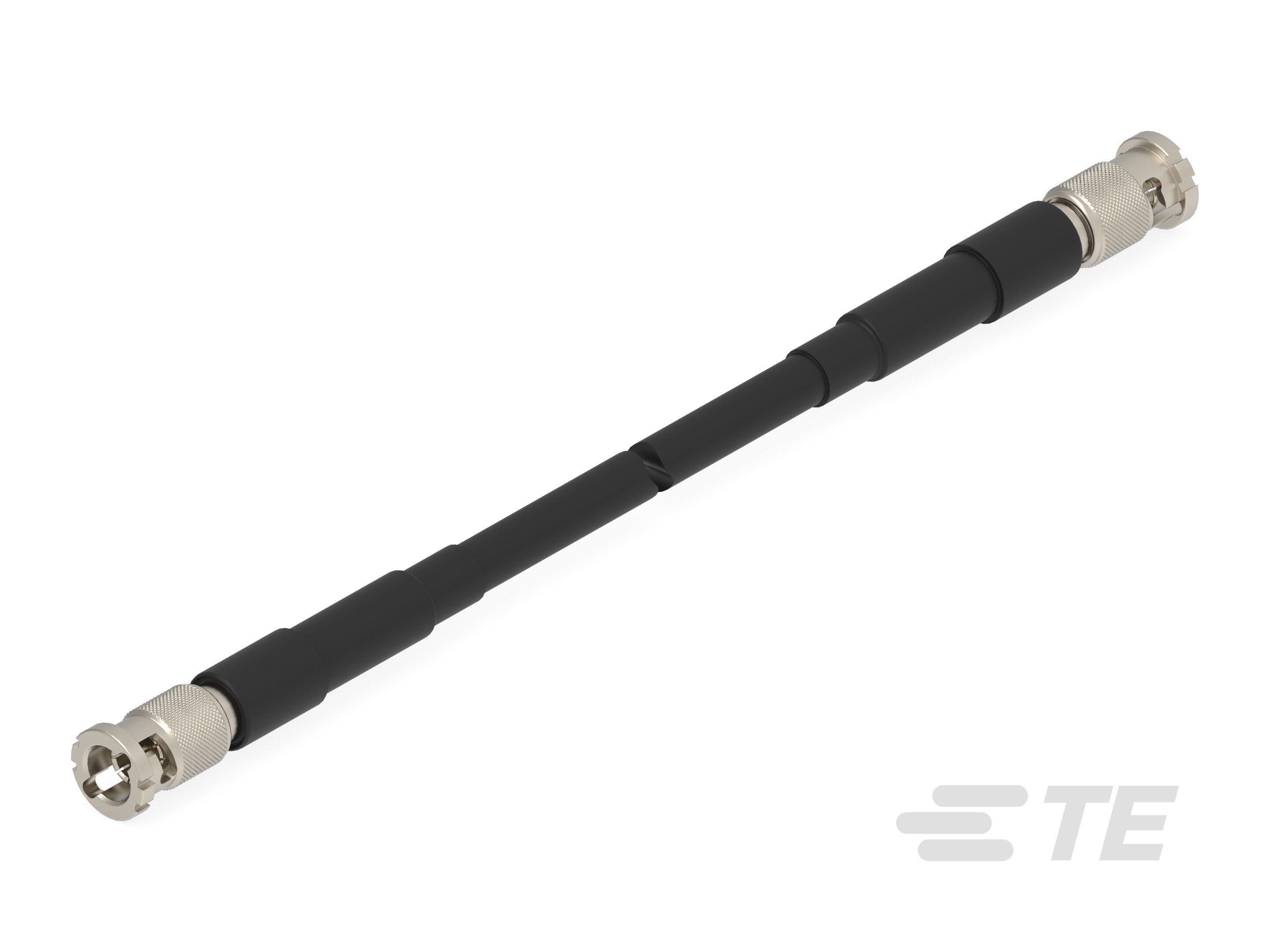

HDBNC Cable Assembly, .5 m [1.64 ft], Black Cable, 0 – 12 GHz, 75 ohm, PVC Jacket, 4 mm [.157 in] Diameter, HDBNC Plug End A, HDBNC Plug End B
Technical Specifications
Parameters and characteristics for this part
| Specification | 2483407-2 |
|---|---|
| 1st Connector | HD-BNC Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | HD-BNC Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Color | Black |
| Frequency - Max | 12 Gbps |
| Length | 19.69 in |
| Operating Temperature (Max) | 75 °C |
| Operating Temperature (Min) | -30 °C |
| Overall Impedance | 75 Ohms |
| Style | HD-BNC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
