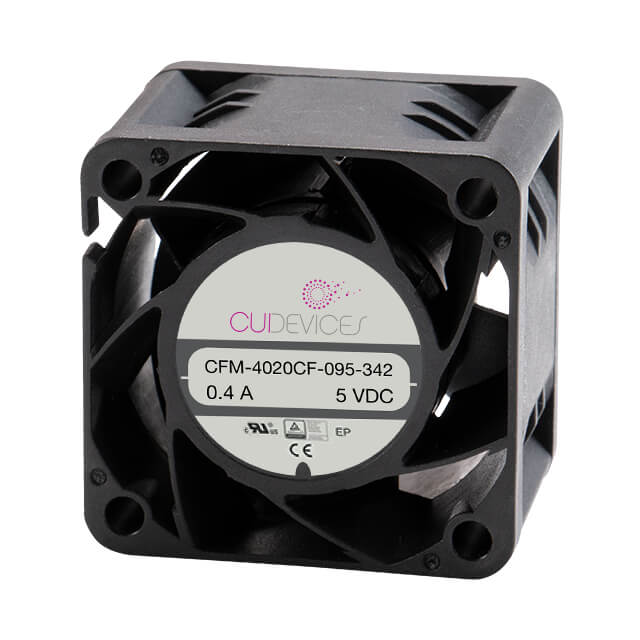

CFM-4020CF-195-342-20
ActiveSame Sky (Formerly CUI Devices)
DC AXIAL FAN, 40 MM SQUARE, 20 M
CFM-4020CF-195-342-20
ActiveSame Sky (Formerly CUI Devices)
DC AXIAL FAN, 40 MM SQUARE, 20 M
Description
General part information
CFM-4020CF-195-342-20
Fan Tubeaxial 12VDC Square - 40mm L x 40mm H omniCOOL™ Magnetic Sleeve 11.9 CFM (0.333m³/min) 3 Wire Leads
Technical Specifications
Parameters and characteristics for this part
| Specification | CFM-4020CF-195-342-20 |
|---|---|
| Air Flow | 11.9 CFM |
| Approval Agency | cURus, TUV, CE |
| Bearing Type | omniCOOL™ Magnetic Sleeve |
| Current Rating | 160 mA |
| Fan Type | Tubeaxial |
| Features | Auto Restart, Speed Sensor (Tach) |
| Lifetime | 40000 Hrs |
| Material - Blade | PBT, Polybutylene Terephthalate |
| Material - Frame | Polybutylene Terephthalate (PBT) |
| Noise | 34.2 dB |
| Operating Temperature (Max) | 158 °F |
| Operating Temperature (Min) | 14 °F |
| Power (Watts) | 1.92 W |
| RPM | 9500 RPM |
| Size / Dimension Height | 40 mm |
| Size / Dimension Length | 40 mm |
| Size / Dimension Shape | Square |
| Static Pressure | 0.41 in H2O |
| Termination | 3 Wire Leads |
| Termination Leads Count | 3 |
| Termination Type | Wire Leads |
| Voltage - Rated | 12 VAC |
| Voltage Range (Max) | 13.2 VDC |
| Voltage Range (Min) | 10.8 VDC |
| Width | 20 mm |
