LCCA31040-M2
ActivePasternack
PLENUM LOW PIM RA 7/16 DIN MALE
LCCA31040-M2
ActivePasternack
PLENUM LOW PIM RA 7/16 DIN MALE
Description
General part information
LCCA31040-M2

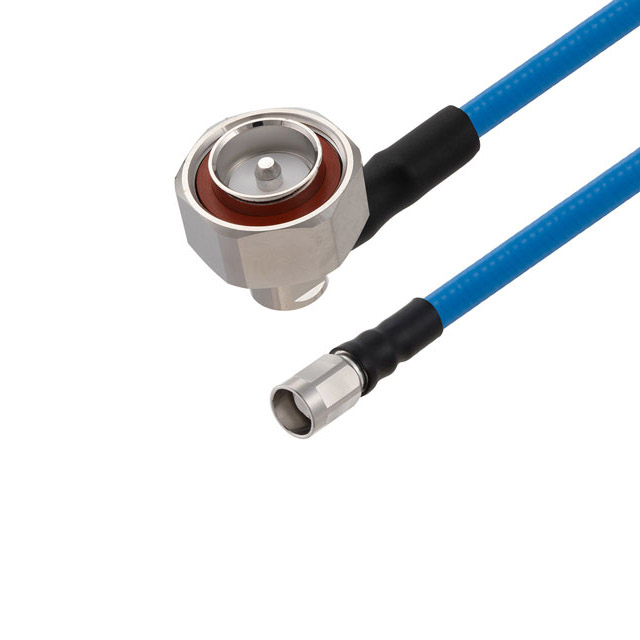

Cable Assembly Coaxial 7/16 DIN to NEX SPP-250LLPL 78.7" (2.0m) 6.6'
Technical Specifications
Parameters and characteristics for this part
| Specification | LCCA31040-M2 |
|---|---|
| 1st Connector | 7/16 Plug, Right Angle, Right Angle, 7/16 Plug |
| 1st Connector - Orientation | Right Angle |
| 1st Connector - Type | Plug |
| 1st Connector Dimension (1) | 7 mm |
| 1st Connector Dimension (2) | 16 mm |
| 1st Connector Mounting Type | Free Hanging (In-Line), Right Angle |
| 1st Contact Gender | Male |
| 2nd Connector | NEX10 Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | SPP, 250LLPL |
| Color | Blue |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 5.8 GHz |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Length (ft) | 6.6 ft |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | 7/16 DIN to NEX |
