1375967-4

Active

TE Connectivity AMP Connectors

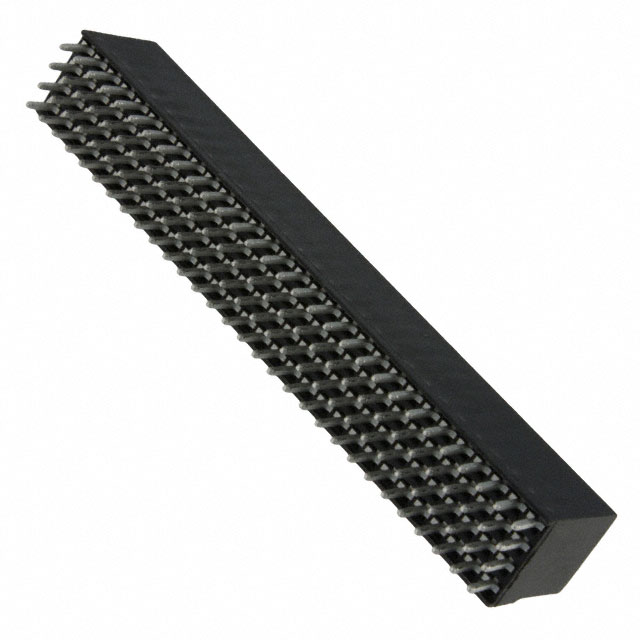

CONN NON-STKTHR PC/104+ 120P PCB

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN NON-STKTHR PC/104+ 120P PCB

Technical Specifications

Parameters and characteristics for this part

Specification	1375967-4

Color	Black
Connector Style	PC/104 Plus
Connector Type	Non-Stackthrough, Unkeyed (PC/104)
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	120
Number of Positions Loaded	All
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.079 in
Pitch [x]	2 mm
Termination	Solder

CONN NON-STKTHR PC/104+ 120P PCB

Part	Color	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Connector Style	Termination	Number of Positions Loaded	Material Flammability Rating	Connector Type	Contact Finish
TE Connectivity AMP Connectors 1375967-4	Black	120	105 ░C	-55 °C	0.079 in	2 mm	15 µin	0.38 µm	Through Hole	PC/104 Plus	Solder	All	UL94 V-0	Non-Stackthrough, Unkeyed (PC/104)	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

120 Connector Non-Stackthrough, Unkeyed (PC/104) Through Hole Black PC/104 Plus
