54-474
ActiveNTE Electronics, Inc
SW-ANTI-VANDAL 100-400MA
54-474
ActiveNTE Electronics, Inc
SW-ANTI-VANDAL 100-400MA
Description
General part information
54-474

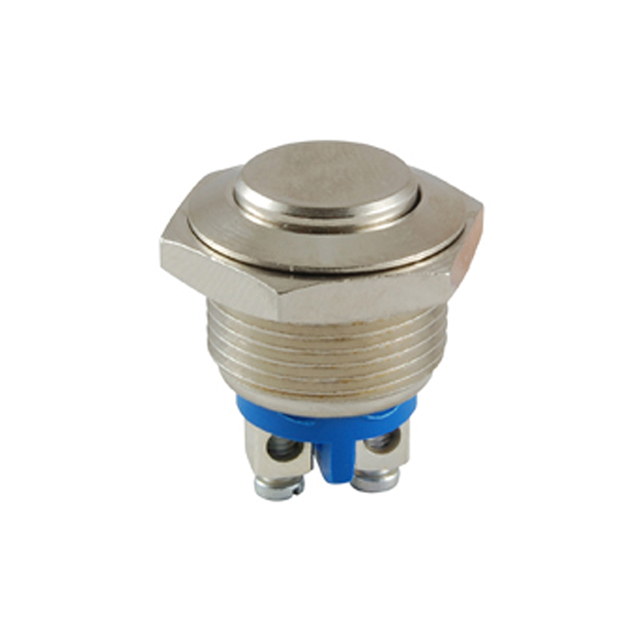

Pushbutton Switch SPST-NO Anti-Vandal Panel Mount, Front
Technical Specifications
Parameters and characteristics for this part
| Specification | 54-474 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Button, Round |
| Circuit | SPST-NO |
| Current Rating | 0.4 A |
| Mounting Type | Front, Panel Mount |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -20 °C |
| Switch Function | Off-Mom |
| Termination Style | Screw Terminal |
| Type | Anti-Vandal |
| Voltage Rating - DC | 48 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
