PSE-290-A-ERA270-S-05
ActiveAmphenol Piher Sensing Systems

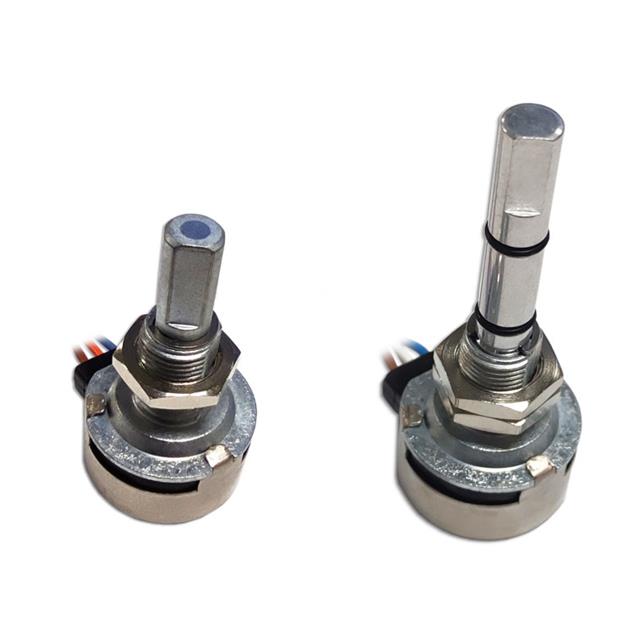

PANEL MOUNT HALL-EFFECT 270 DEGR
PSE-290-A-ERA270-S-05
ActiveAmphenol Piher Sensing Systems
PANEL MOUNT HALL-EFFECT 270 DEGR
Description
General part information
PSE-290-A-ERA270-S-05
Hall Effect Sensor Angle, Linear, Rotary Flatted Shaft Wire Leads
Technical Specifications
Parameters and characteristics for this part
| Specification | PSE-290-A-ERA270-S-05 |
|---|---|
| Actuator Type | Flatted Shaft |
| Electrical Rotation Angle (Maximum) | 270 ° |
| Electrical Rotation Angle (Minimum) | 0 ° |
| For Measuring | Angle, Rotary, Linear |
| Linearity Tolerance | 1 % |
| Mechanical Rotation Angle (Maximum) | 290 ° |
| Mechanical Rotation Angle (Minimum) | 0 ° |
| Mounting Type | Panel Mount |
| Output | Analog Voltage |
| Output Signal | Clockwise Increase |
| Package / Case | Module, Flatted Shaft |
| Technology | Hall Effect |
| Termination Style | Wire Leads |
| Voltage - Supply (Maximum) | 5.5 V |
| Voltage - Supply (Minimum) | 4.5 V |
