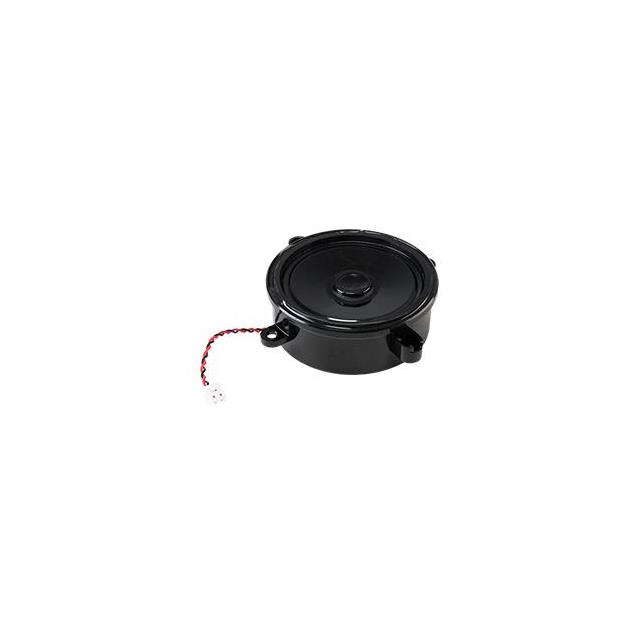

CES-6123-34PM-67
ActiveSame Sky (Formerly CUI Devices)
ENCLOSED SPEAKER, 1W, 8OHM
CES-6123-34PM-67
ActiveSame Sky (Formerly CUI Devices)
ENCLOSED SPEAKER, 1W, 8OHM
Description
General part information
CES-6123-34PM-67
4 Ohms General Purpose Speaker 3 W 600 Hz ~ 4.5 kHz Top Round
Technical Specifications
Parameters and characteristics for this part
| Specification | CES-6123-34PM-67 |
|---|---|
| Distortion Rating (Max) | 5 % |
| Distortion Rating Power | 1 W |
| Efficiency - dBA | 116 dBA |
| Efficiency - Testing Length | 100 mm |
| Efficiency - Testing Power | 3 W |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Frequency - Self Resonant | 750 Hz |
| Frequency Range (Max) | 4500 Hz |
| Frequency Range (Min) | 600 Hz |
| Height - Seated (Max) | 0.919 in |
| Impedance | 4 Ohms |
| Ingress Protection | IPX7 |
| Material - Cone | Polyethylene Terephthalate (PET) |
| Material - Magnet | Nd-Fe-B |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -40 °C |
| Port Location | Top |
| Power - Max | 4 VA |
| Power - Rated | 3 W |
| Shape | Round |
| Size / Dimension Diameter | 2.402 in |
| Technology | Magnetic |
| Termination | Wire Leads |
| Type | General Purpose |
