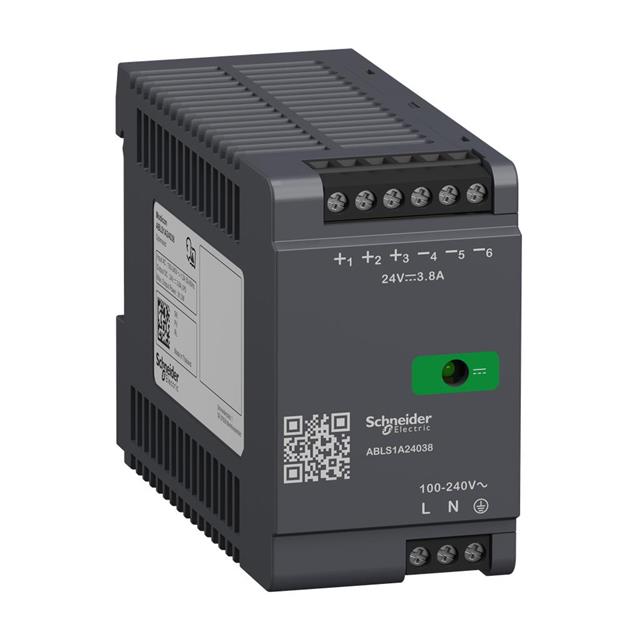

Specification	ABLS1A24038

AC Voltage - Input (Max)	240 VAC
AC Voltage - Input (Min)	100 VAC
Applications	ITE (Commercial)
Approval Agency	EN, cUL, EAC, KC, NEC Class 2, CB, UL, CSA, IEC, CE
Current - Output (Max)	3.8 A
Efficiency	89 %
Features	Universal Input, IP20
Input Type	AC
Number of Outputs	1
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-20 °C
Power (Watts)	91 W
Size / Dimension Height	2.95 in
Size / Dimension Length	3.94 in
Size / Dimension Width	1.77 in
Standard Number	62368-1, 60950-1
Voltage - Isolation	3 kV
Voltage - Output 1	24 V
