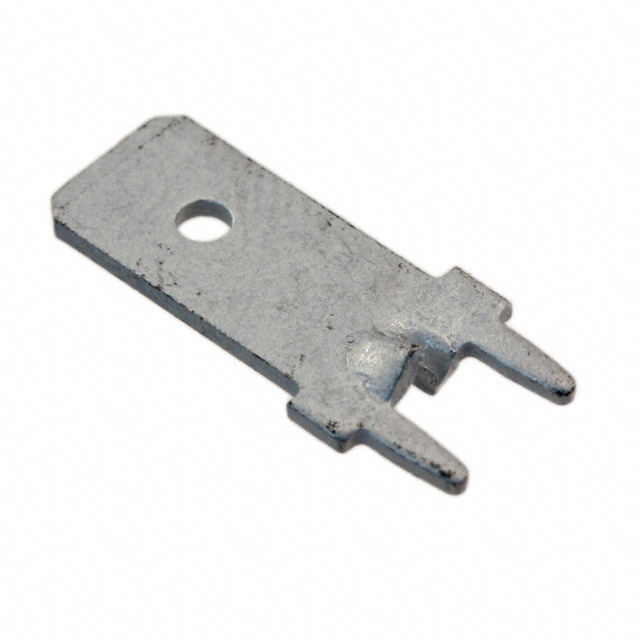

1289-STR
ActiveKeystone Electronics
TERMINALS MALE .250 QUICK FIT STURDI MNT 15A .540H
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1289-STR
ActiveKeystone Electronics
TERMINALS MALE .250 QUICK FIT STURDI MNT 15A .540H
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1289-STR |
|---|---|
| Contact Finish | Tin |
| Contact Material | Brass |
| Gender | Male |
| Insulation | Non-Insulated |
| Length - Overall | 18.03 mm |
| Length - Overall | 0.71 " |
| Mounting Type | Through Hole |
| Tab Length | 11.94 mm |
| Tab Length | 0.47 in |
| Tab Thickness | 0.032 in |
| Tab Thickness | 0.81 mm |
| Tab Width | 6.35 mm |
| Tab Width | 0.25 in |
| Terminal Type | Standard |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.23 | |
| 10 | $ 0.17 | |||
| 25 | $ 0.15 | |||
| 50 | $ 0.14 | |||
| 100 | $ 0.13 | |||
| 250 | $ 0.12 | |||
| 500 | $ 0.11 | |||
| 1000 | $ 0.10 | |||
| 2500 | $ 0.09 | |||
| Tape & Reel (TR) | 10000 | $ 0.07 | ||
Description
General part information
1289-STR
0.250" (6.35mm) Quick Connect Male Solder Connector Non-Insulated
