Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 10000 | $ 0.23 | |
General part information

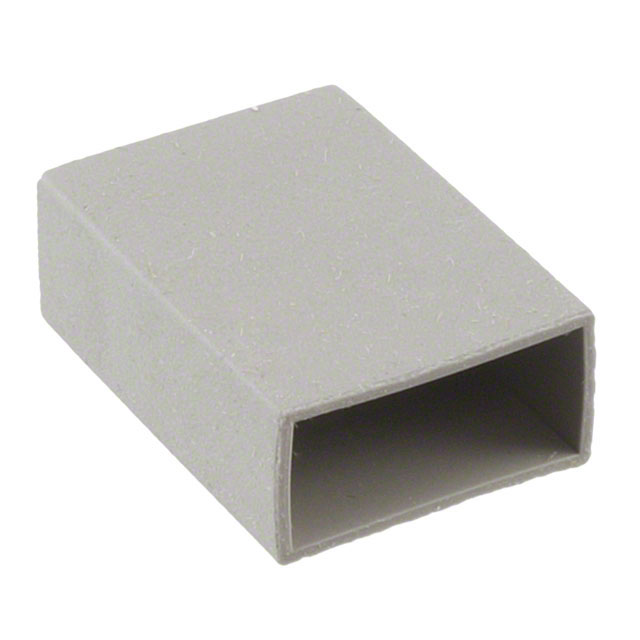

Thermal Pad Gray 16.00mm x 11.40mm x 5.80mm Rectangular
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | CP22-TO220-16-11.4-5.8-0.45 | CP22-T Series |
|---|---|---|
| Color | Gray | Gray |
| Material | Silicone | Silicone |
| Outline [x] | 16 mm | 16 mm |
| Outline [y] | 11.4 mm | 11.4 mm |
| Outline [z] | 5.8 mm | 5.8 mm |
| Shape | Rectangular | Rectangular |
| Shelf Life | 24 Months | 24 Months |
| Thermal Conductivity | 1.9 W/m-K | 1.9 W/m-K |
| Thickness | 0.45 mm | 0.45 mm |
| Thickness | 0.0177 in | 0.0177 in |
| Thickness | - | 0.305 mm |
| Thickness | - | 0.012 " |
| Type | Interface Cap | Interface Cap |
| Usage | TO-220 | TO-220 |
THERM PAD 16MMX11.4MMX5.8MM GRAY
| Part | Usage | Thickness [custom] | Thickness [custom] | Shape | Outline [z] | Outline [x] | Outline [y] | Material | Type | Color | Shelf Life | Thermal Conductivity | Thickness | Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
t-Global Technology CP22-TO220-16-11.4-5.8-0.3 | TO-220 | 0.305 mm | 0.012 " | Rectangular | 5.8 mm | 16 mm | 11.4 mm | Silicone | Interface Cap | Gray | 24 Months | 1.9 W/m-K | ||
t-Global Technology CP22-TO220-16-11.4-5.8-0.45 | TO-220 | Rectangular | 5.8 mm | 16 mm | 11.4 mm | Silicone | Interface Cap | Gray | 24 Months | 1.9 W/m-K | 0.45 mm | 0.0177 in |
