Description
General part information

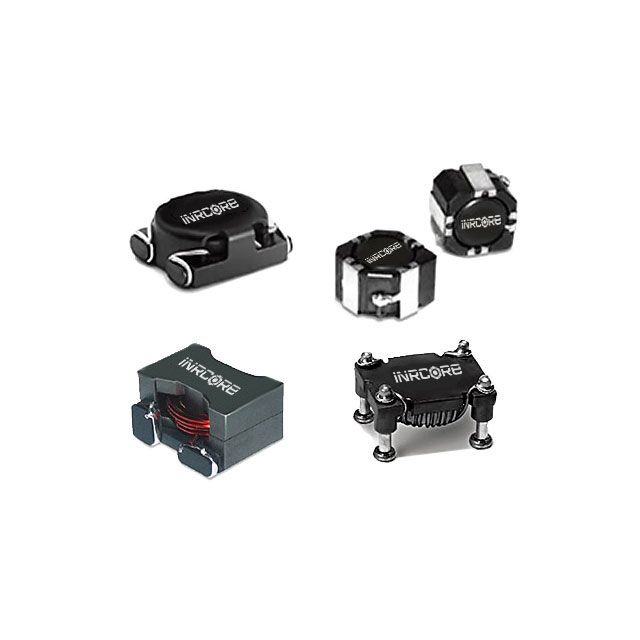

PL8151
2.1 µH Unshielded Toroidal Inductor 11.5 A 4mOhm Max Nonstandard
Technical Specifications
Parameters and characteristics for this part
| Specification | PL8151 |
|---|---|
| Current Rating | 11.5 A |
| DC Resistance (DCR) (Max) | 4 mOhm |
| Height - Seated (Max) | 0.41 in |
| Inductance | 2.1 µH |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 130 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Nonstandard |
| Shielding | Unshielded |
| Size / Dimension Length | 0.725 in |
| Size / Dimension Width | 0.575 in |
| Type | Toroidal |
