IAMA0006
ObsoleteRed Lion Controls

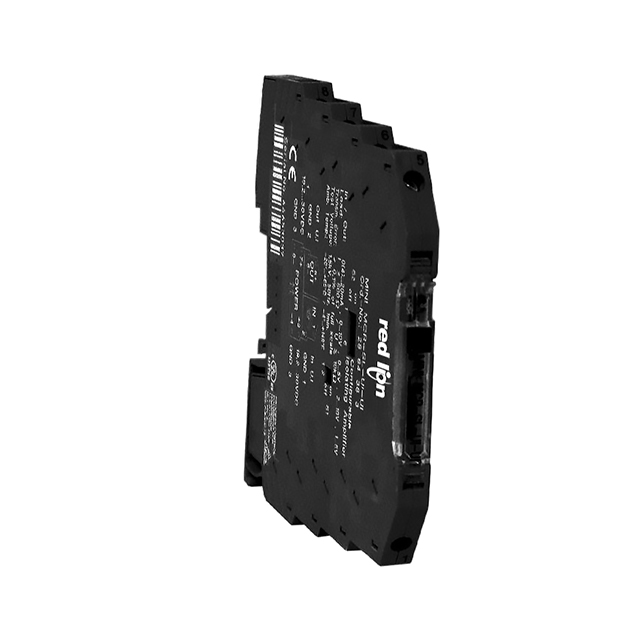

CONFIGURABLE 3-WAY ISOLATING AMP
IAMA0006
ObsoleteRed Lion Controls
CONFIGURABLE 3-WAY ISOLATING AMP
Description
General part information
IAMA0006
Signal Conditioner Current, Voltage DIN Rail
Technical Specifications
Parameters and characteristics for this part
| Specification | IAMA0006 |
|---|---|
| Input Current Range (Maximum) | 20 mA |
| Input Current Range (Minimum) | 0 mA |
| Input Type | Voltage, Current |
| Input Voltage Range (Maximum) | 10 V |
| Input Voltage Range (Minimum) | 0 V |
| Isolation | 1500 V |
| Mounting Type | DIN Rail |
| Operating Temperature (Max) | 65 °C |
| Operating Temperature (Min) | -20 °C |
| Output Current Range (Max) | 20 mA |
| Output Current Range (Min) | 0 mA |
| Output Type | Current, Voltage |
| Output Voltage Range (Max) | 10 VDC |
| Output Voltage Range (Min) | 0 VDC |
| Termination Style | Screw Terminal |
| Type | Signal Conditioner |
| Voltage - Supply (Maximum) | 30 VDC |
| Voltage - Supply (Minimum) | 19.2 VAC/VDC |
