095-902-586-250
ActiveMcGill Microwave Systems
RF CABLE ASSEMBLIES RF CONNECTOR MHF I LK RIGHT ANGLE PLUG TO RP-SMA STRAIGHT JACK BULKHEAD FRONT MOUNT IP67 1.13 MM 50 OHM 250MM
095-902-586-250
ActiveMcGill Microwave Systems
RF CABLE ASSEMBLIES RF CONNECTOR MHF I LK RIGHT ANGLE PLUG TO RP-SMA STRAIGHT JACK BULKHEAD FRONT MOUNT IP67 1.13 MM 50 OHM 250MM
Description
General part information
095-902-586-250

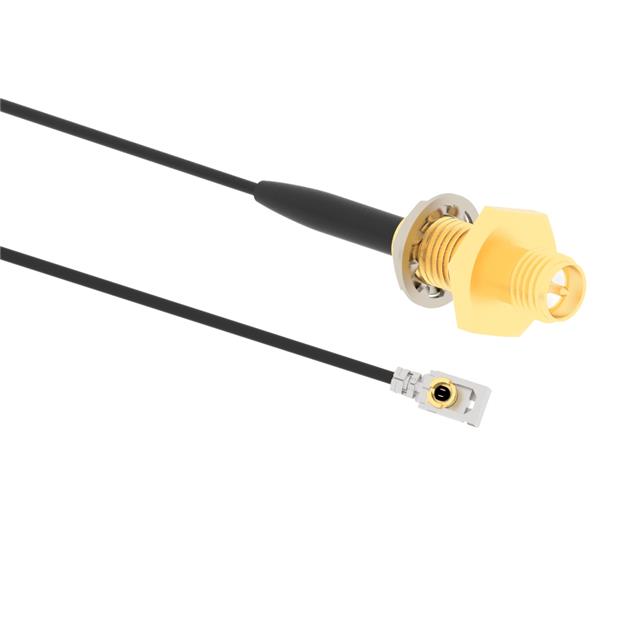

Cable Assembly Coaxial IPEX MHF1 LK to RP-SMA 1.13mm OD Coaxial Cable 9.843" (250.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | 095-902-586-250 |
|---|---|
| 1st Connector | RP-SMA Jack |
| 1st Connector Mounting Feature | Front Side Nut, Bulkhead |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Male |
| 2nd Connector | IPEX MHFI LK (Locking) Plug, Right Angle, I-PEX MHFI LK (Locking) Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Outer Diameter | 1.13 mm |
| Cable Type | Coaxial Cable, OD Coaxial Cable, 1.13mm OD Coaxial Cable |
| Cable Type Size | 1.13 |
| Color | Black |
| Frequency - Max | 6000 MHz |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Length | 9.843 in |
| Overall Impedance | 50 Ohms |
| Style | IPEX MHF1 LK to RP-SMA, I-PEX MHF1 LK to RP-SMA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
