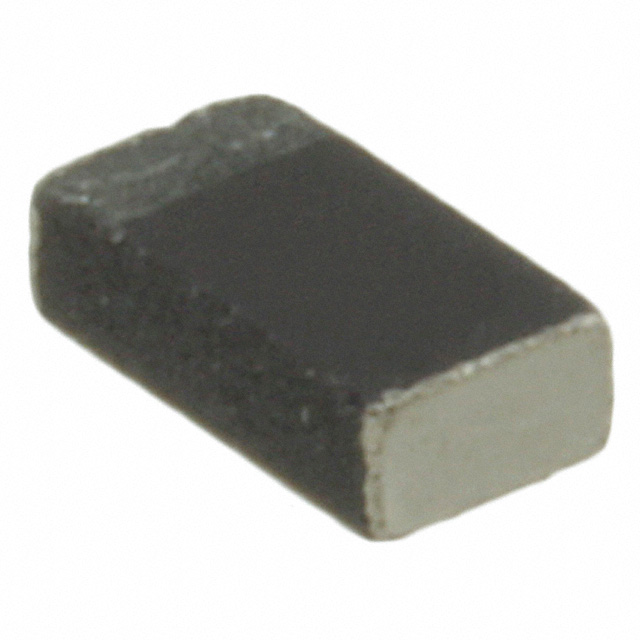

298D107X06R3Q2T
ActiveVishay Dale
CAP TANT 100UF 20% 6.3V 1206
298D107X06R3Q2T
ActiveVishay Dale
CAP TANT 100UF 20% 6.3V 1206
Description
General part information
298D107X06R3Q2T
100 µF Molded Tantalum Capacitors 6.3 V 1206 (3216 Metric) 1.1Ohm
Technical Specifications
Parameters and characteristics for this part
| Specification | 298D107X06R3Q2T |
|---|---|
| Capacitance | 100 µF |
| ESR (Equivalent Series Resistance) | 1.1 Ohm |
| Features | General Purpose |
| Height - Seated (Max) | 0.039 in |
| Manufacturer Size Code | Q |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 1206 (3216 Metric) |
| Size / Dimension Length | 0.126 in |
| Size / Dimension Width | 0.063 in |
| Tolerance | 20 % |
| Type | Molded |
| Voltage - Rated | 6.3 V |
