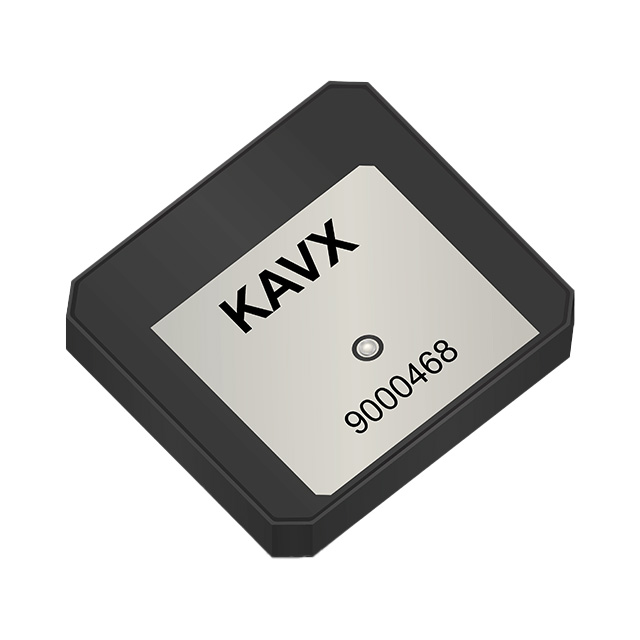

9000468
ActiveKYOCERA AVX
ISM 868MHZ 36X36X6MM CERAMIC PAT
9000468
ActiveKYOCERA AVX
ISM 868MHZ 36X36X6MM CERAMIC PAT
Description
General part information
9000468
RF ANTENNA ISM, M2M, RFID Ceramic Patch Adhesive
Technical Specifications
Parameters and characteristics for this part
| Specification | 9000468 |
|---|---|
| Antenna Type | Ceramic Patch |
| Applications | ISM, M2M, RFID |
| Frequency (Center/Band) | 866.5 MHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 1 GHz |
| Frequency Group Minimum (UHF) | 300 MHz |
| Frequency Range (Max) | 870 MHz |
| Frequency Range (Min) | 863 MHz |
| Gain | 1 dBi |
| Height (Max) | 0.236 in |
| Mounting Type | Adhesive |
| Number of Bands | 1 |
| Power - Max | 2 VA |
| RF Family/Standard | General ISM |
| VSWR | 2.2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
