BHI160-SHUTL

Obsolete

Bosch Sensortec

SHUTTLE BOARD BHI160

Search across all available documentation for this part.

Obsolete

Bosch Sensortec

SHUTTLE BOARD BHI160

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BHI160-SHUTL	BHI160 Series

Contents	Board(s)	Board(s)
Function	Accelerometer, Gyroscope	Accelerometer, Gyroscope, Magnetometer
Interconnect System	-	Shuttle Board 3.0 Socket
Mounting Type	-	Surface Mount
Operating Temperature	-	85 °C
Operating Temperature	-	-40 °C
Output Type	-	I2C
Package / Case	-	24-VFLGA Module
Primary Attributes	-	±1000, ±16, ±125, ±2, ±2000, ±4, ±2500, ±500, ±250, ±8, ±1300
Secondary Attributes	-	I2C Interface(s)
Sensor Type	-	Accelerometer, Gyroscope, 6 Axis
Supplier Device Package	-	24-LGA (3x3)
Type	Sensor	Sensor
Utilized IC / Part	BHI160	BHI160, BHI160B, BMM150

IMU ACCEL/GYRO 3-AXIS I2C 24LGA

Part	Output Type	Sensor Type	Supplier Device Package	Package / Case	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Contents	Utilized IC / Part	Function	Type	Secondary Attributes	Primary Attributes	Interconnect System
Bosch Sensortec BHI160	I2C	6 Axis, Accelerometer, Gyroscope	24-LGA (3x3)	24-VFLGA Module	Surface Mount	85 °C	-40 °C
Bosch Sensortec BHI160-SHUTL								Board(s)	BHI160	Accelerometer, Gyroscope	Sensor
Bosch Sensortec BHI160B	I2C	6 Axis, Accelerometer, Gyroscope	24-LGA (3x3)	24-VFLGA Module	Surface Mount	85 °C	-40 °C
Bosch Sensortec SHUTTLE BOARD 3.0 BHI160B								Board(s)	BHI160B, BMM150	Accelerometer, Gyroscope, Magnetometer	Sensor	I2C Interface(s)	±1000, ±125, ±1300, ±16, ±2, ±2000, ±250, ±2500, ±4, ±500, ±8	Shuttle Board 3.0 Socket

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

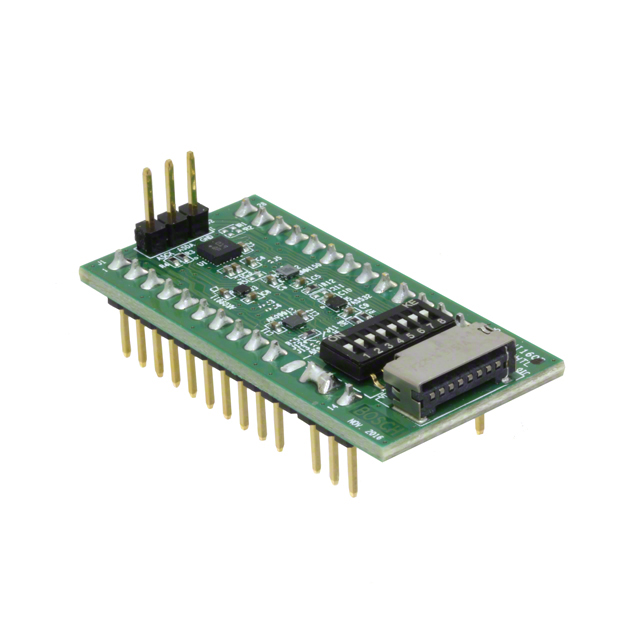

BHI160 Accelerometer, Gyroscope Sensor Platform Evaluation Expansion Board
