Description
General part information
KW CWLNM3.TK-S4S9-4L07M0

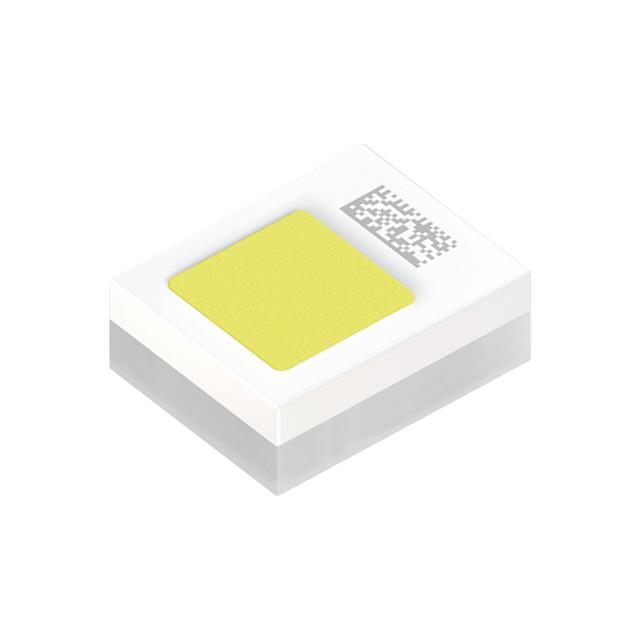

LED Lighting OSLON® Compact PL White 3.16V 1A 120° 2-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | KW CWLNM3.TK-S4S9-4L07M0 |
|---|---|
| Color | White |
| Current - Max | 1.5 A |
| Current - Test | 1 A |
| Flux (Maximum) | 535 lm |
| Flux (Minimum) | 395 lm |
| Flux (Nominal) | 465 lm |
| Grade | Automotive |
| Height - Seated (Max) | 0.03 in |
| Lumens/Watt | 147 lm/W |
| Mounting Type | Surface Mount |
| Package / Case | No Lead, 2-SMD |
| Qualification | AEC-Q102 |
| Size / Dimension Length | 0.075 in |
| Size / Dimension Width | 0.059 in |
| Thermal Resistance of Package | 4 °C/W |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 3.16 V |
