SC2403N
ActivePasternack

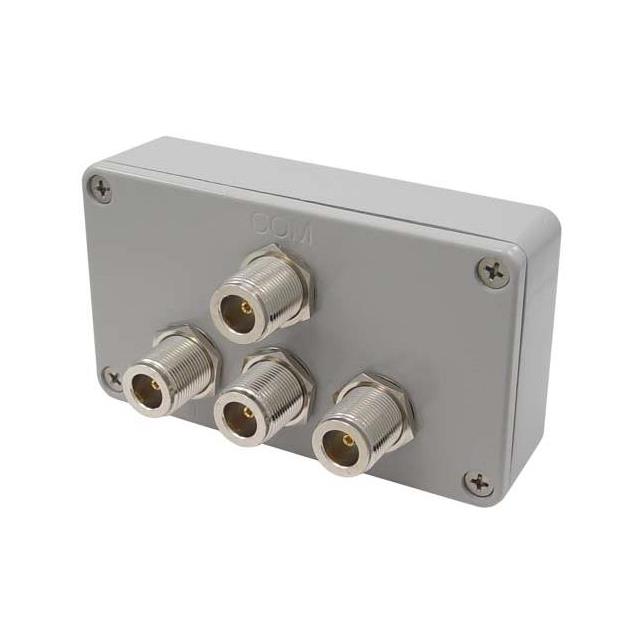

SPT3-WAY 2.4 GHZ NF CON
SC2403N
ActivePasternack
SPT3-WAY 2.4 GHZ NF CON
Description
General part information
SC2403N
RF Power Divider 2.4 GHz ~ 2.5 GHz 1.5 VSWR (Max) Module
Technical Specifications
Parameters and characteristics for this part
| Specification | SC2403N |
|---|---|
| Frequency (Max) | 2.5 GHz |
| Frequency (Min) | 2.4 GHz |
| Insertion Loss | 0.7 dB |
| Package / Case | Module |
| Size / Dimension Height | 1.189 in |
| Size / Dimension Length | 4.551 in |
| Size / Dimension Width | 2.579 in |
| VSWR (Max) | 1.5 |
