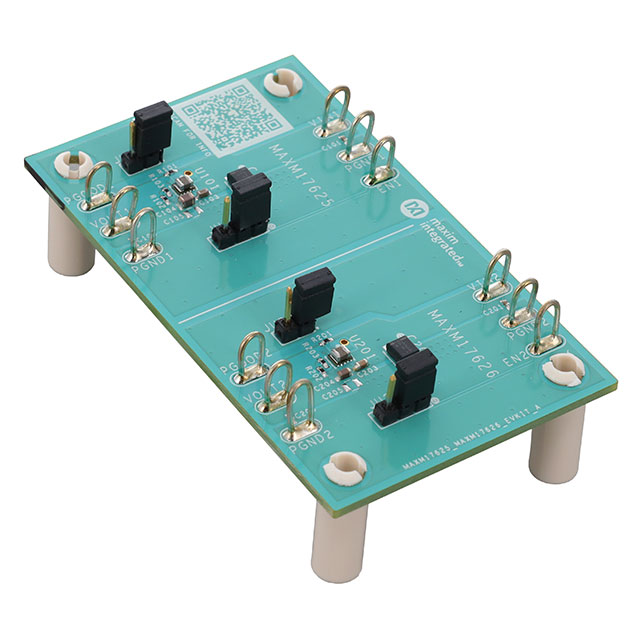

MAXM17626EVKIT#
ActiveAnalog Devices Inc./Maxim Integrated
EVAL KIT, SYNC STEP-DOWN DC-DC CONVERTER ROHS COMPLIANT: YES
MAXM17626EVKIT#
ActiveAnalog Devices Inc./Maxim Integrated
EVAL KIT, SYNC STEP-DOWN DC-DC CONVERTER ROHS COMPLIANT: YES
Description
General part information
MAXM17626EVKIT#
MAXM17626 - DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board
Technical Specifications
Parameters and characteristics for this part
| Specification | MAXM17626EVKIT# |
|---|---|
| Board Type | Fully Populated |
| Contents | Board |
| Current - Output | 600 mA |
| Frequency - Switching | 4 MHz |
| Main Purpose | DC/DC, Step Down |
| Non-Isolated Output Count | 1 count |
| Output Type | Non-Isolated |
| Regulator Topology | Buck |
| Supplied Contents | Board(s) |
| Total Output Count | 1 |
| Utilized IC / Part | MAXM17626 |
| Voltage - Input (Maximum) | 5.5 V |
| Voltage - Input (Minimum) | 3.6 V |
| Voltage - Output | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
