2227582-1
ActiveTE Connectivity AMP Connectors

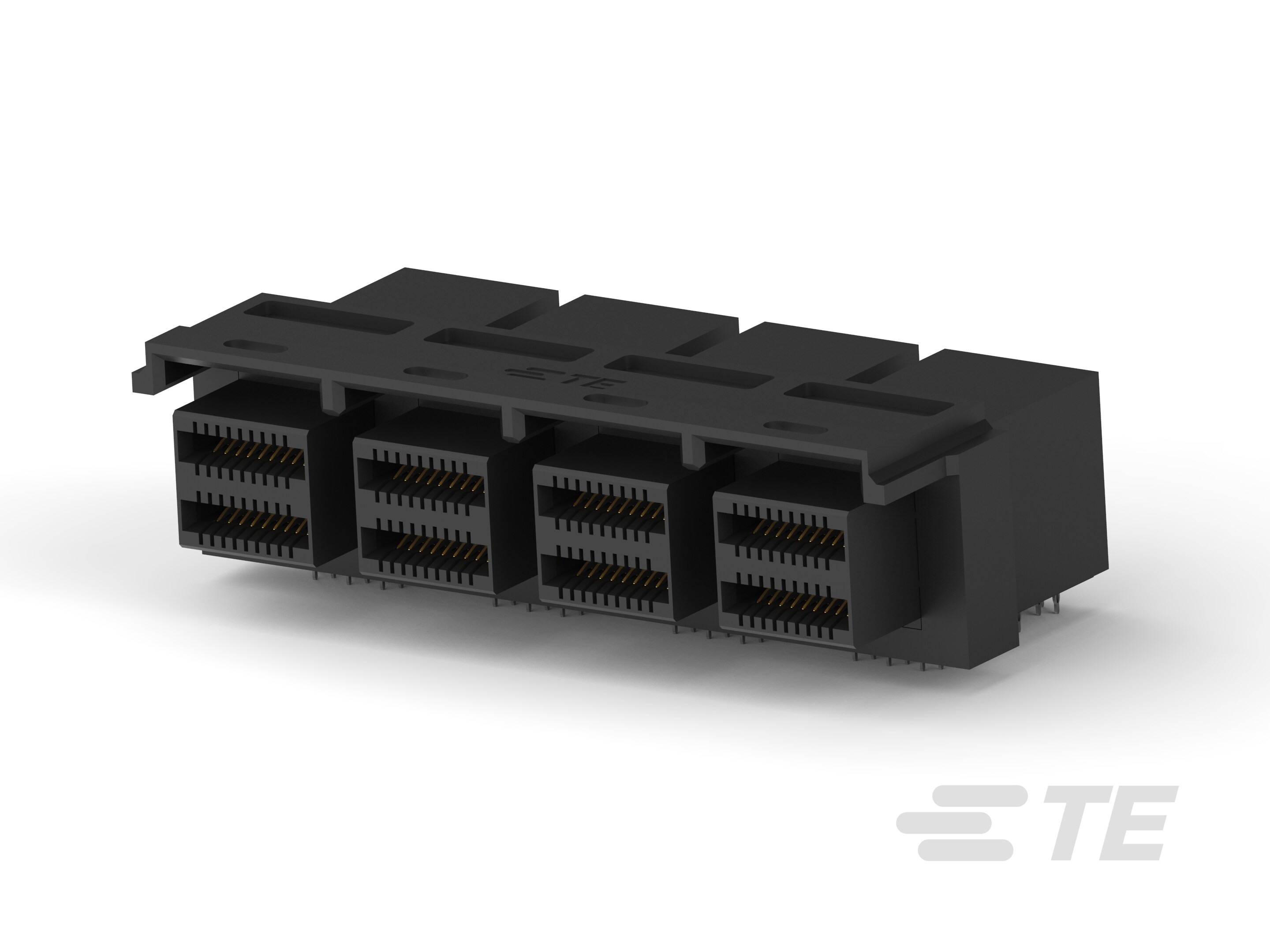

1X4 R/A ASSY, MINI SAS HD INTERNAL
2227582-1
ActiveTE Connectivity AMP Connectors
1X4 R/A ASSY, MINI SAS HD INTERNAL
Description
General part information
2227582-1
Internal Mini-SAS HD, Receptacle, Cable-to-Board, 144 Position, 4 Row, 4 Port, Right Angle, Through Hole - Press-Fit, Mini-SAS HD
Technical Specifications
Parameters and characteristics for this part
| Specification | 2227582-1 |
|---|---|
| Connector Pin Configuration (Columns) | 4 pins |
| Connector Pin Configuration (Rows) | 1 pins |
| Connector Style | Receptacle |
| Connector Type | SAS, Mini HD |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions (Columns) | 36 |
| Number of Positions (Rows) | 4 |
| Number of Positions (Total) | 144 |
| Termination | Press-Fit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
