1442344
ActivePhoenix Contact

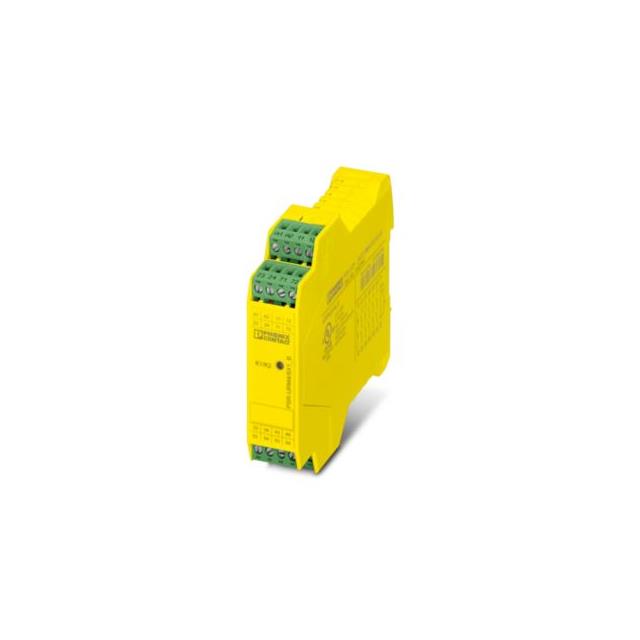

SAFETY RELAY EXTENSION MODULE
1442344
ActivePhoenix Contact
SAFETY RELAY EXTENSION MODULE
Description
General part information
1442344
SAFETY RELAY EXTENSION MODULE
Technical Specifications
Parameters and characteristics for this part
| Specification | 1442344 |
|---|---|
| Coil Current | 0.075 A |
| Coil Voltage (Max) | 26.4 VAC/DC |
| Coil Voltage (Min) | 19.2 VDC |
| Coil Voltage (Type) | DC, AC |
| Contact Form | B, 1, A, PST-5NO/1NC, 5, Form |
| Contact Material | Silver Tin Oxide (AgSnO) |
| Contact Rating (Current) | 6 A |
| Features | Lighted Indicator, Diode |
| Mounting Type | DIN Rail |
| Operate Time | 25 ms |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -20 °C |
| Pin Count | 6 |
| Release Time | 20 ms |
| Switching Voltage AC (Max) | 250 VAC |
| Switching Voltage DC (Max) | 250 VDC |
| Termination Style | Screw Terminal |
