XS112BLNAL2
ActiveSCHNEIDER ELECTRIC

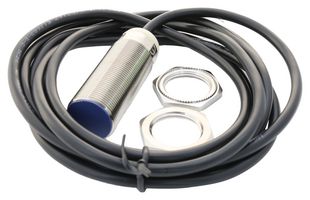

INDUCTIVE PROXIMITY SENSOR, CYLINDRICAL, OSISENSE XS, M12, 2.5 MM, NPN12 TO 24 VDC, PRE-WIRED
XS112BLNAL2
ActiveSCHNEIDER ELECTRIC
INDUCTIVE PROXIMITY SENSOR, CYLINDRICAL, OSISENSE XS, M12, 2.5 MM, NPN12 TO 24 VDC, PRE-WIRED
Description
General part information
XS112BLNAL2
Inductive Proximity Sensor 0.079" (2mm) IP67 Cylinder, Threaded - M12
Technical Specifications
Parameters and characteristics for this part
| Specification | XS112BLNAL2 |
|---|---|
| Indicator | LED |
| Ingress Protection | IP67 |
| Material - Body | Nickel-Plated Brass |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Output Type | 3-Wire, NPN-NO |
| Package / Case | Threaded - M12, Cylinder |
| Sensing Distance | 0.079 " |
| Sensor Type | Inductive |
| Shielding | Unshielded |
| Termination Style | Cable Leads |
| Voltage - Supply (Maximum) | 24 VAC |
| Voltage - Supply (Minimum) | 12 VDC |
