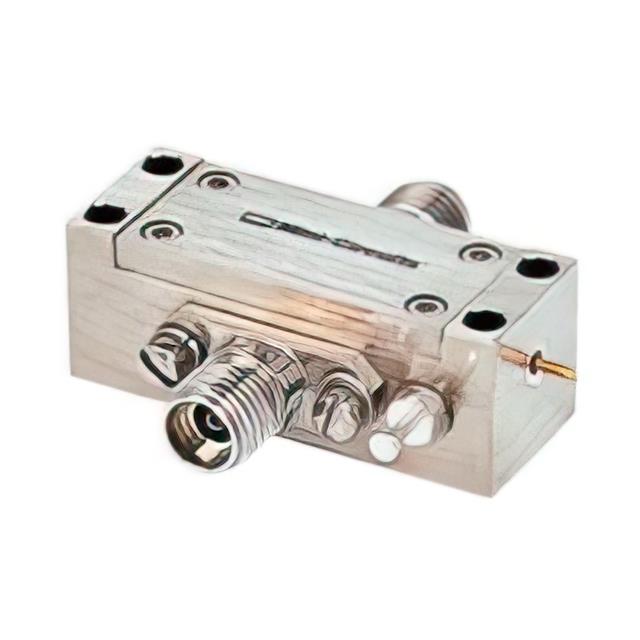

ZVE-323LN-K+
ActiveMini-Circuits
LNA, 18000 - 32000 MHZ, 50
ZVE-323LN-K+
ActiveMini-Circuits
LNA, 18000 - 32000 MHZ, 50
Description
General part information
ZVE-323LN-K+
RF Amplifier IC Radar 18GHz ~ 32GHz
Technical Specifications
Parameters and characteristics for this part
| Specification | ZVE-323LN-K+ |
|---|---|
| Current - Supply | 75 mA |
| Frequency (Max) | 32 GHz |
| Frequency (Min) | 18 GHz |
| Gain | 24 dB |
| Mounting Type | Chassis Mount |
| Noise Figure | 3 dB |
| P1dB | 10 dBm |
| Package / Case | Module |
| RF Type | Radar |
| Test Frequency (Maximum) | 32 GHz |
| Test Frequency (Minimum) | 18 GHz |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
