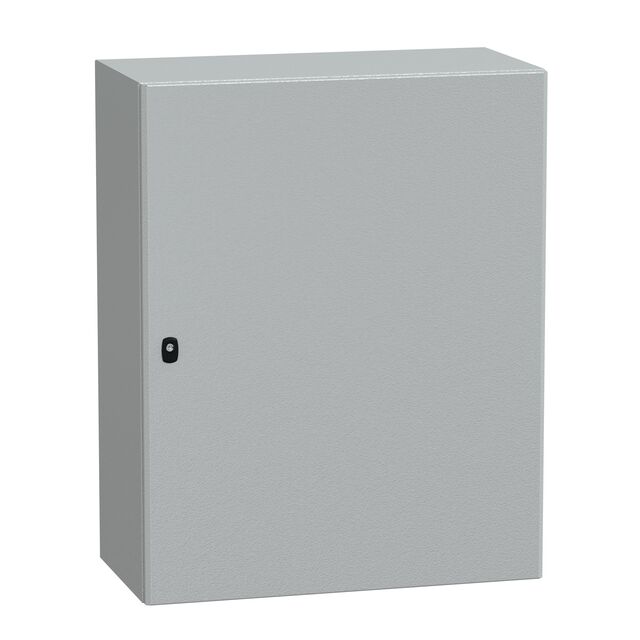

NSYS3D10840
ActiveSCHNEIDER ELECTRIC
METAL ENCLOSURE, MULTIPURPOSE, STEEL, 1 M, 800 MM, 400 MM, IP66
NSYS3D10840
ActiveSCHNEIDER ELECTRIC
METAL ENCLOSURE, MULTIPURPOSE, STEEL, 1 M, 800 MM, 400 MM, IP66
Description
General part information
NSYS3D10840
Enclosure Metal, Steel Light Gray Hinged Door 39.370" L x 31.496" W (1000.00mm x 800.00mm) X 15.748" (400.00mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | NSYS3D10840 |
|---|---|
| Area (L x W) | 1240 in² |
| Color | Light Gray |
| Container Type | Enclosure |
| Design | Hinged Door |
| Height | 15.748 in |
| Material | Metal, Steel |
| Ratings | IP66 |
| Size / Dimension Length | 39.37 in |
| Size / Dimension Width | 31.496 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
