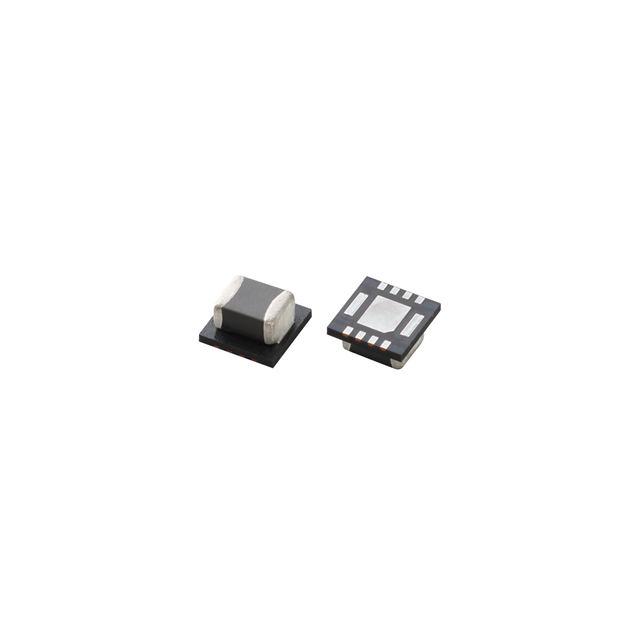

MYRGC075060W31RA
ObsoleteMurata Electronics
0.6A, NON-ISOLATED POL DC/DC CON
MYRGC075060W31RA
ObsoleteMurata Electronics
0.6A, NON-ISOLATED POL DC/DC CON
Description
General part information
MYRGC075060W31RA
Non-Isolated PoL Module DC DC Converter 1 Output 1 ~ 5 V 600mA 3V - 36V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | MYRGC075060W31RA |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 600 mA |
| Efficiency | 86 % |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 10-PowerLFDFN Module |
| Size / Dimension Height | 0.07 in |
| Size / Dimension Length | 0.12 in |
| Size / Dimension Width | 0.12 in |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) | 36 V |
| Voltage - Input (Min) | 3 V |
| Voltage - Output 1 (Max) | 5 V |
| Voltage - Output 1 (Min) | 1 V |
