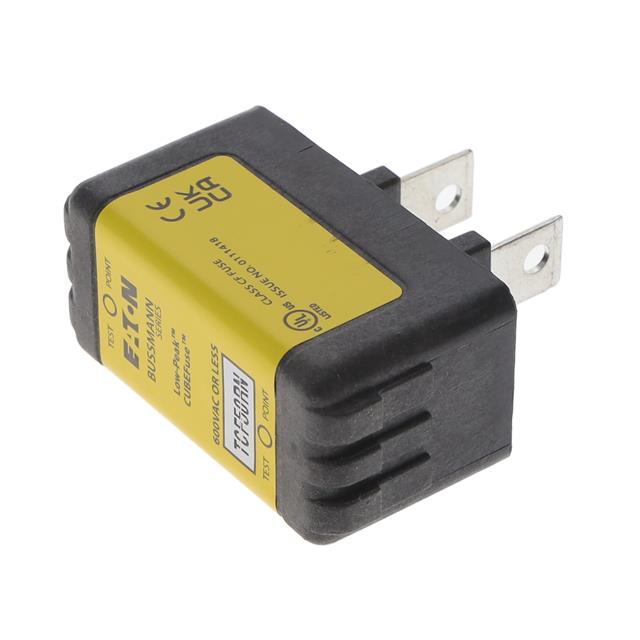

TCF50RN
ActiveEaton - Electronics Division
FUSE, INDUSTRIAL / POWER, LOW-PEAK, CUBEFUSE TCF SERIES, 50 A, 600 VAC, 300 VDC
TCF50RN
ActiveEaton - Electronics Division
FUSE, INDUSTRIAL / POWER, LOW-PEAK, CUBEFUSE TCF SERIES, 50 A, 600 VAC, 300 VDC
Description
General part information
TCF50RN
50A 600 VAC 300 VDC Fuse Rectangular Requires Holder
Technical Specifications
Parameters and characteristics for this part
| Specification | TCF50RN |
|---|---|
| Applications | Electrical, Industrial |
| Approval Agency | CE, UL, CSA |
| Breaking Capacity | 300 kA |
| Class | CF |
| Current Rating | 50 A |
| Fuse Type | Rectangular |
| Mounting Type | Requires Holder |
| Operating Temperature (Max) | 80 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Module, Blade Type |
| Response Time | Slow Blow |
| Size / Dimension Height | 1.142 in |
| Size / Dimension Length | 2.126 in |
| Size / Dimension Width | 0.984 in |
| Voltage Rating - AC | 600 VAC |
| Voltage Rating - DC | 300 V |
