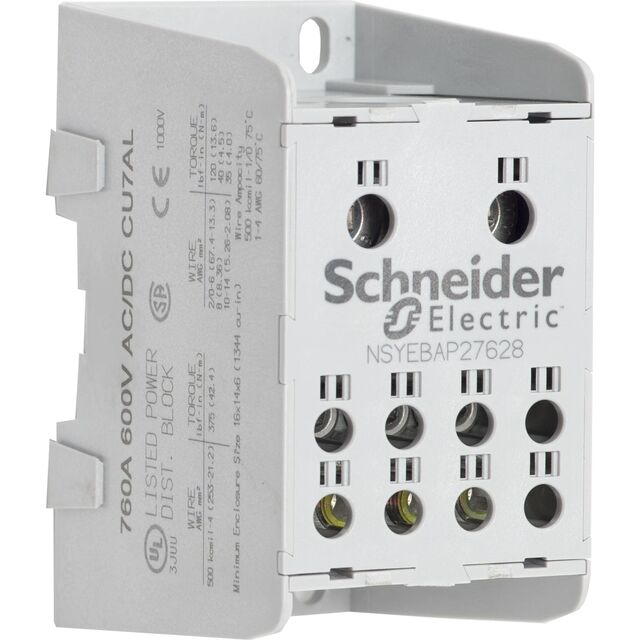

NSYEBCP27628
ObsoleteSCHNEIDER ELECTRIC
ENCLOSED POWER BLOCK 600V 760A
NSYEBCP27628
ObsoleteSCHNEIDER ELECTRIC
ENCLOSED POWER BLOCK 600V 760A
Description
General part information
NSYEBCP27628
2 Pole Power Distribution Block 760 A 600 V
Technical Specifications
Parameters and characteristics for this part
| Specification | NSYEBCP27628 |
|---|---|
| Current Rating | 760 A |
| Line Side Connection Type | Screw Connection |
| Line Side Connections Per Pole | 2 |
| Line Side Wire Cross-sectional Area | 500 MCM |
| Line Side Wire/Stud Designation | AWG, 4 |
| Load Side Connection Type | Screw Connection |
| Load Side Connections Per Pole | 8 |
| Load Side Wire/Stud Size | 2/0, 14 AWG |
| Number of Poles | 2 |
| Type | Power Distribution Block |
| Voltage - Rated | 600 V |
