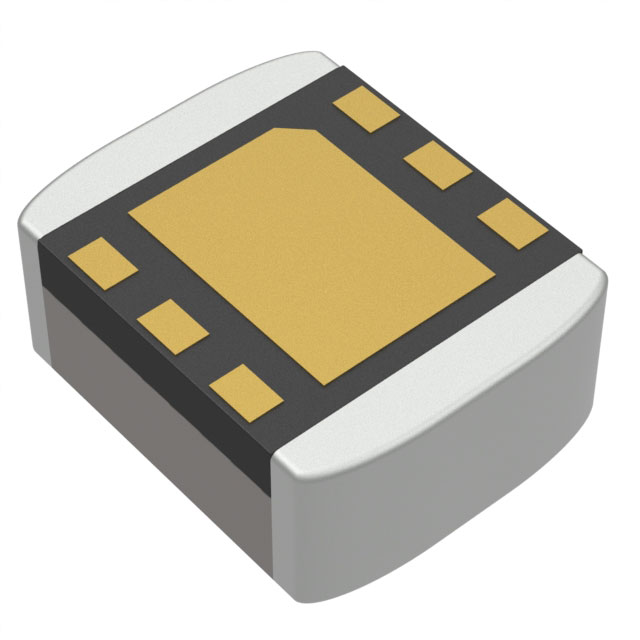

XCL303A052KR-G
ObsoleteTorex Semiconductor Ltd
DC DC CONVERTER -1.2 TO -6V
Deep-Dive with AI
Search across all available documentation for this part.
XCL303A052KR-G
ObsoleteTorex Semiconductor Ltd
DC DC CONVERTER -1.2 TO -6V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | XCL303A052KR-G |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 300 mA |
| Efficiency | 75 % |
| Features | Adjustable Output |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 8-TDFN Exposed Pad |
| Size / Dimension [x] | 0.1 in |
| Size / Dimension [x] | 2.5 mm |
| Size / Dimension [y] | 0.08 " |
| Size / Dimension [y] | 2 mm |
| Size / Dimension [z] | 0.04 in |
| Size / Dimension [z] | 1 mm |
| Supplier Device Package | CL-2025-02 |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 5.5 V |
| Voltage - Input (Min) [Min] | 2.7 V |
| Voltage - Output 1 [Max] | -6 V |
| Voltage - Output 1 [Min] | -1.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
XCL303A052KR-G
Non-Isolated PoL Module DC DC Converter 1 Output -1.2 ~ -6V 300mA 2.7V - 5.5V Input
Documents
Technical documentation and resources
No documents available
